Camera
Image Sensor: 1/2.7” 8Megapixel progressive CMOS
Effective Pixels: 3840 (H) × 2160 (V)
ROM: 128 MB
RAM: 256 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
Min. Illumination: 0.008 Lux@F1.5
IR Distance: 40 m
IR On/Off Control: Auto/Manual
IR LEDs Number: 2

Lens
Lens Type: Motorized vari-focal
Mount Type: φ14
Focal Length: 2.7 mm–13.5 mm
Max. Aperture: F1.5
Field of View: Horizonal: 113°–31°; Vertical: 58°–17°; Diagonal: 138°–36°
Iris Type: Fixed aperture
Close Focus Distance: 0.8 m–0.8 m

Smart Event
General IVS Analytics: Intrusion; tripwire

Video

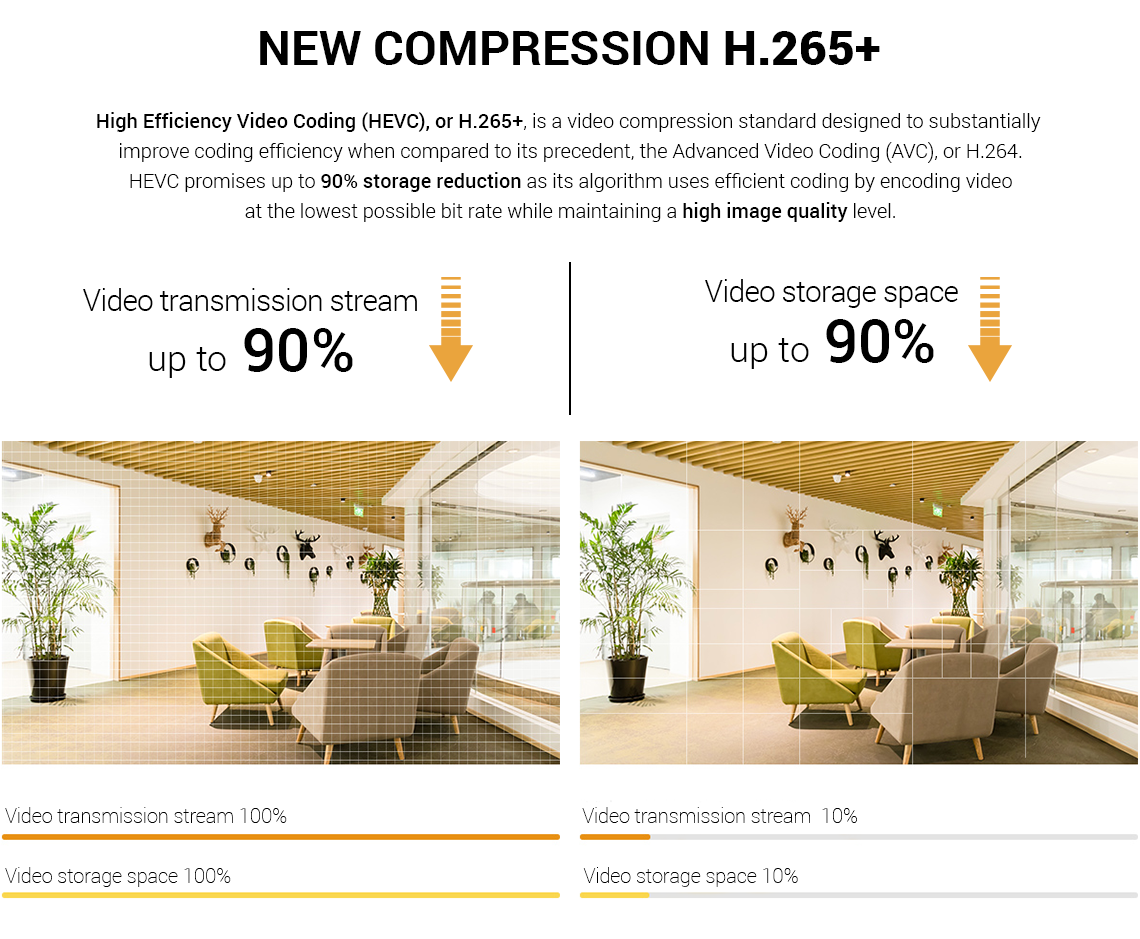

Video Compression: H.265; H.264; H.264B; MJPEG
Smart Codec: Yes
Video Frame Rate: Main stream: 3840 × 2160 (1 fps–15 fps); 2688 × 1520 (1 fps–25/30 fps); Sub stream: 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps)
Stream Capability: 2 streams
Resolution: 3840×2160 (3840×2160); 3072×2048 (3072×2048); 3072×1728 (3072×1728); 2592×1944 (2592×1944); 2688×1520 (2688×1520); 3M (2048×1536); 2304×1296 (2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240)
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest(RoI): Yes (4 areas)
Smart IR: Yes
Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.)
Mirror: Yes
Privacy Masking: 4 areas

Network
Network: RJ-45 (10/100 Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP;  RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;  QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability: ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec
User/Host: 20
Edge Storage: Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser: IE, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS
Mobile Phone: IOS; Android

Power
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: < 7.6W

Environment
Operating Conditions: -30°C to +60°C / less than ≤ 95%
Storage Temperature: -40°C to +60°C
Protection: IP67

Structure
Casing: Metal
Dimensions: 108.3 mm × Φ122 mm
Net Weight: 0.69 kg
