Technical Specification

Model

POE42F-60

Ethernet Port

2*10/100Mbps Uplink ports

4*10/100 Mbps PoE ports

PoE Power Consumption

Port1≤60W, Port2-4≤30W, Total≤60W

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

1.8Gbps

Packet Forwarding Rate

890kpps

Packet Buffer Memory

768Kb

MAC Table Size

2K

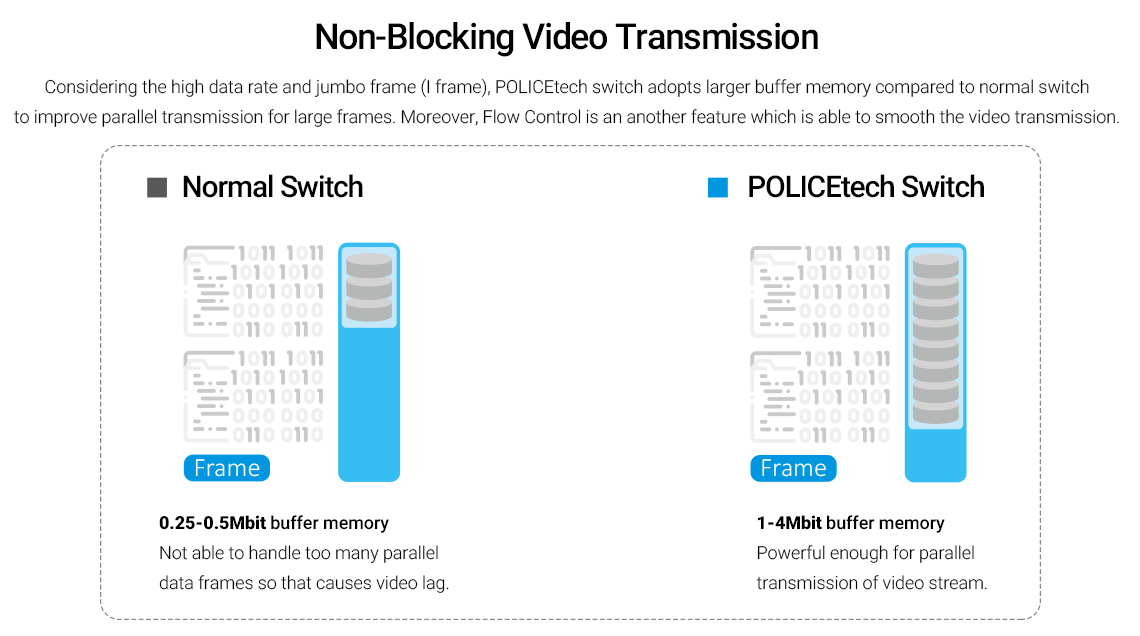

Flow Control

Enable by default

Application Humidity

10%~90%

Power

DC48~57V power adapter

Lightning Protection

Common Mode 2KV

Differential Mode 0.5KV

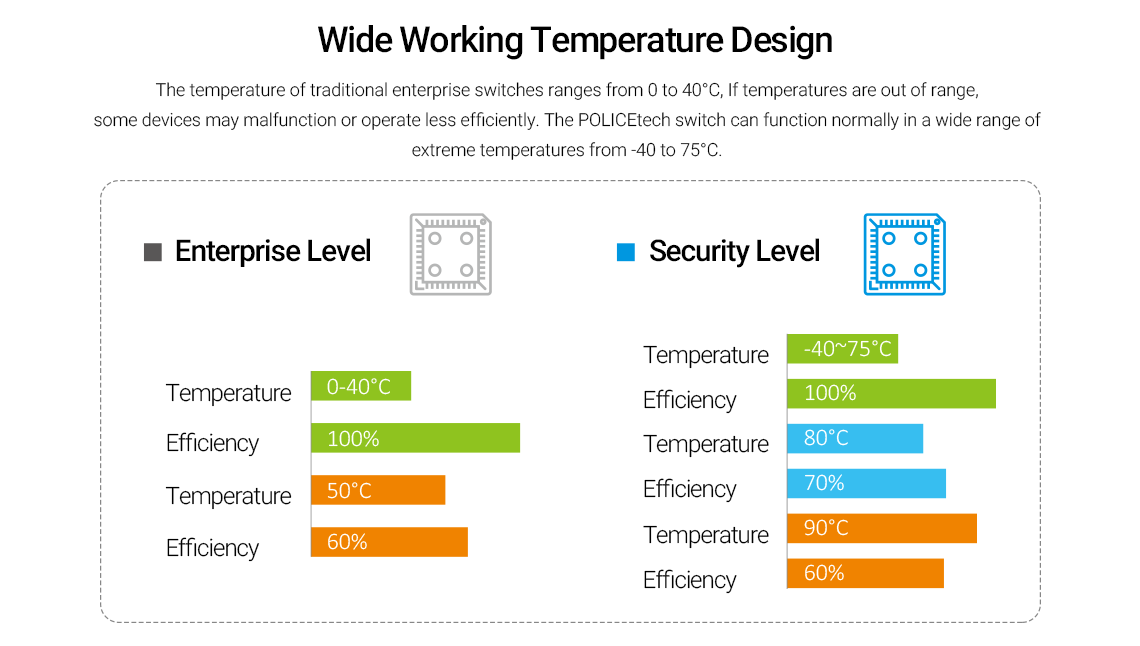

Working Temperature

-10°C~+55°C

Weight

0.3kg

Dimension(W×D×H)

130mm×85mm×26mm
