System
Main Processor: Embedded Micro Processor
Operation System: Embedded LINUX OS

Video
Video Compression: H.264

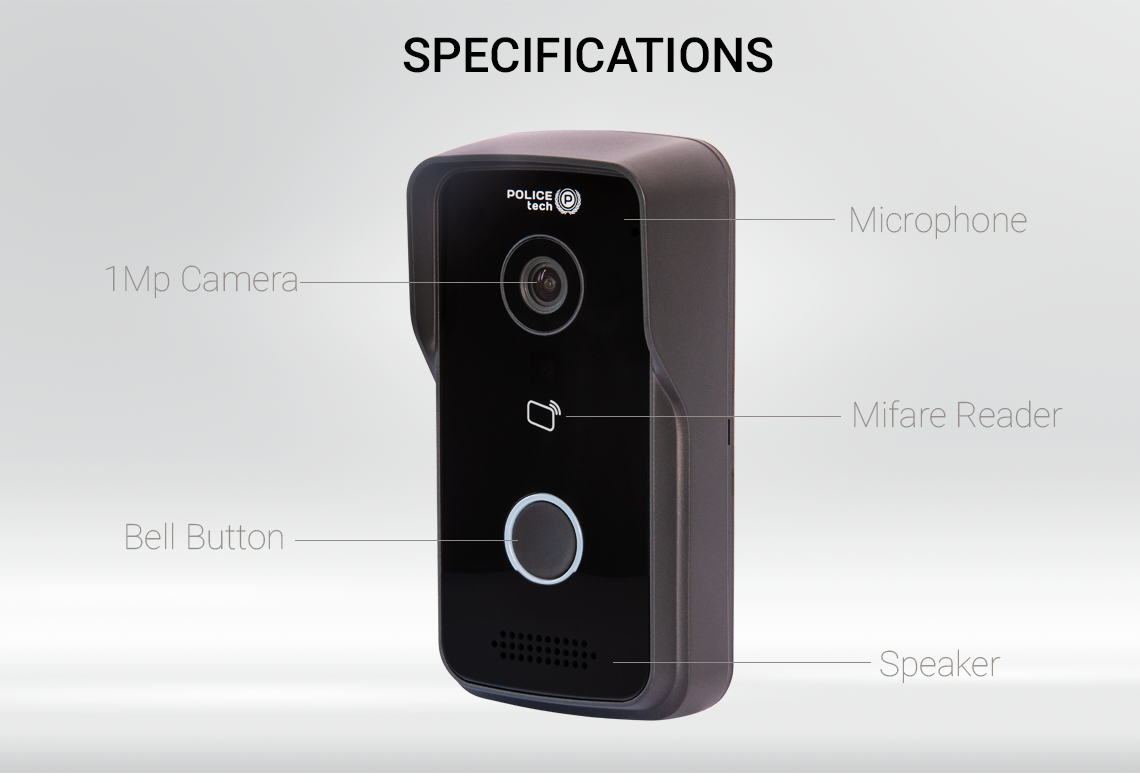

Image Sensor: 1/4” 1MP CMOS
Lens: 2.2mm

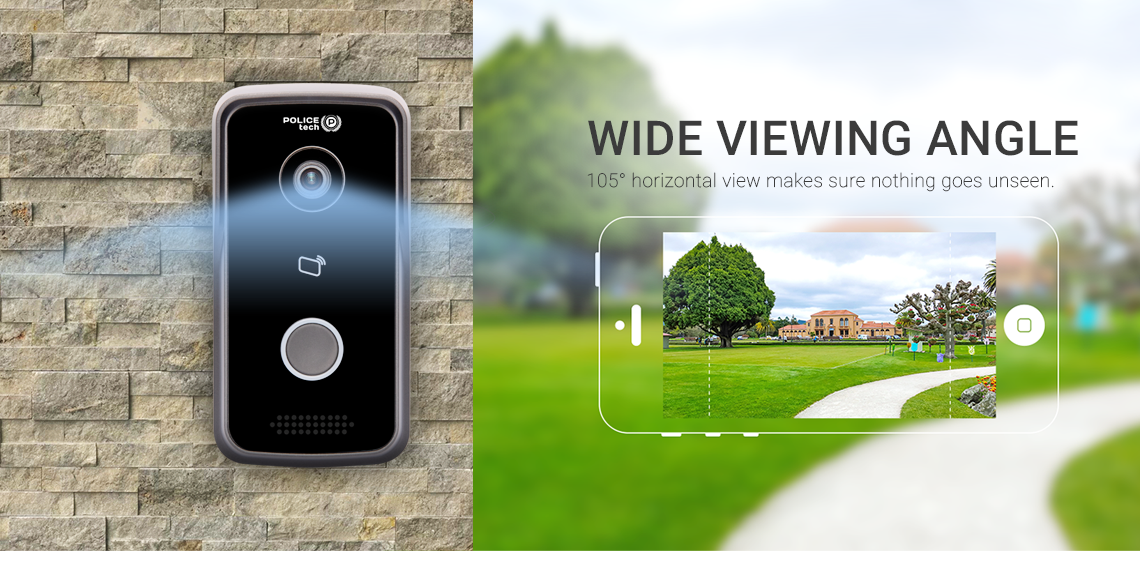

Angle of View: D:125° H:105°
Day/Night: ICR

Audio
Audio Compression: G.711
Audio Input: Omnidirectional Mic
Audio Output: Built-in Speaker

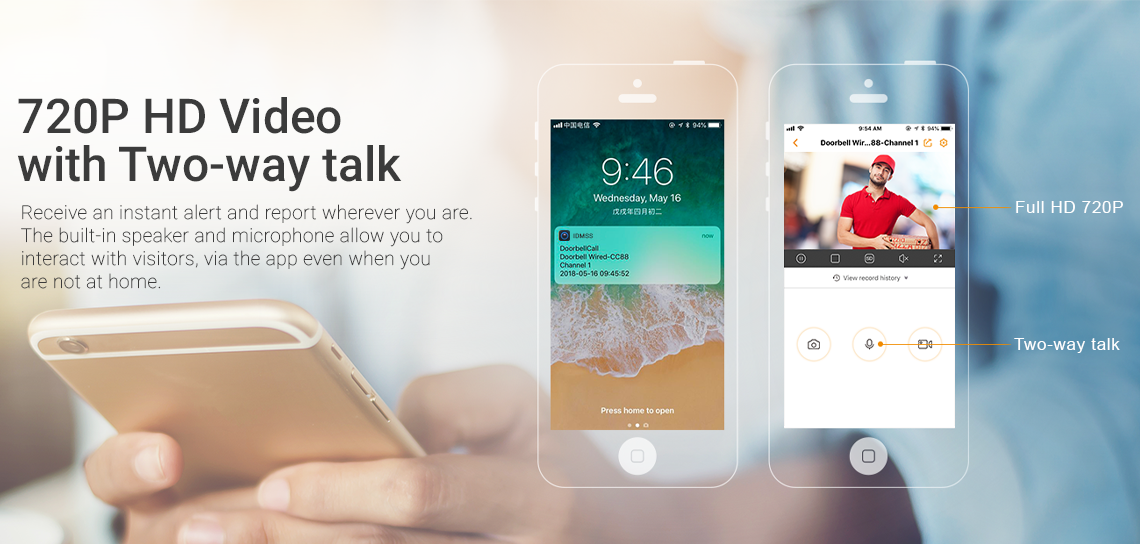

Bidirectional Talk: Support Dual-way Bidirectional talk

Operation Mode
Keypad: Single Mechanical Button
Reader: Mifare Card
Body Approaching: 1m

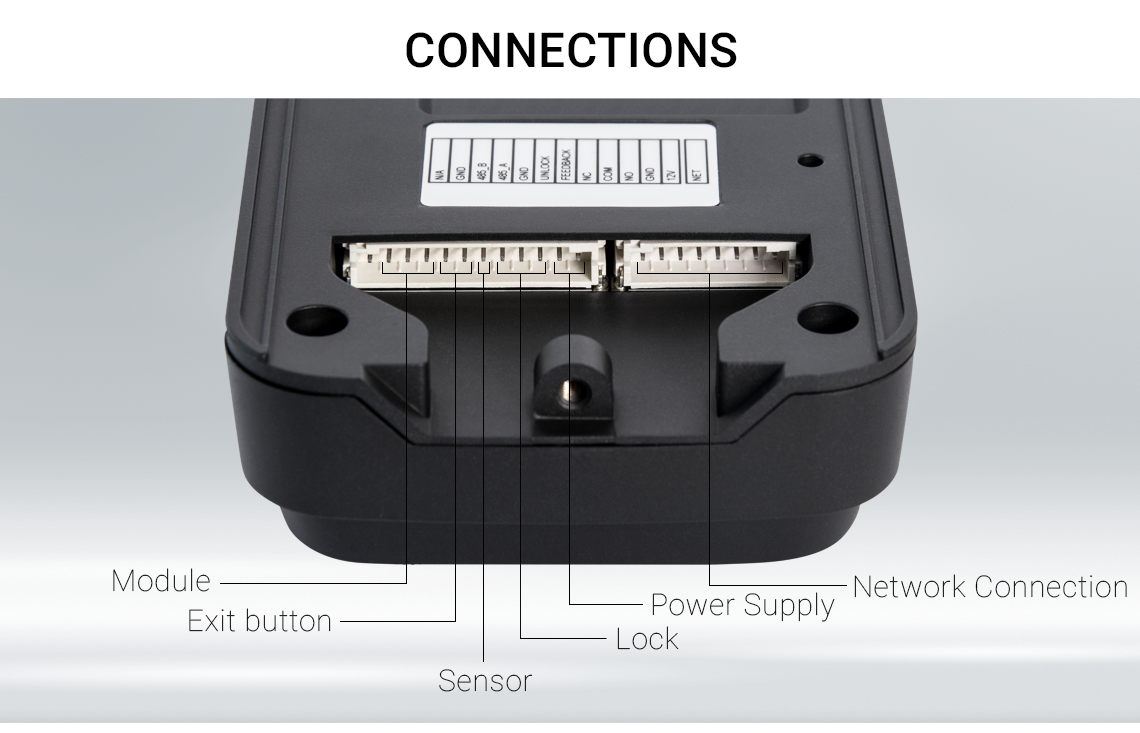

Interface
Door Control: 2(1 relay out for main lock, 1 extended by access control module)
Alarm In: 2(1ch unlock button, 1ch feedback)
RS485:     1

Network
Wi-Fi: IEEE802.11b/g
Ethernet: 10M/100Mbps Self-adaptive
Network Protocol: TCP/IP

General
Ingress Protection: IP65
Tamper Switch: 1
Memory Slot: Micro SD, Max 32G
Installation: Surface
Material: Plastic
Power: DC 12V,PoE(802.3af)
Power Consumption: Standby ≤1W, Work ≤10W
Working Environments: -30°C~+60°C
Relative Humidity: 10%~90%RH

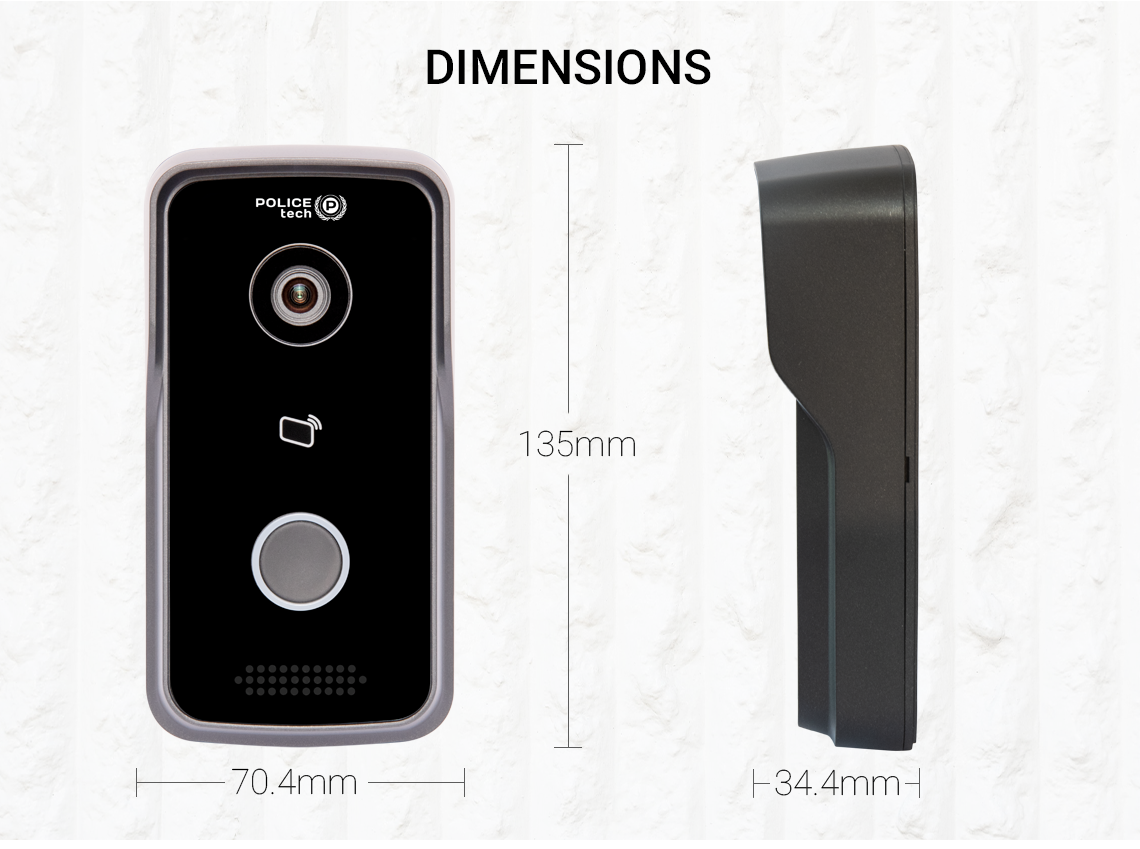

Dimensions: 135mm×70.4mm×34.4mm
Weight: 0.4Kg
