System
Main processor: Embedded processor
Operating system: Embedded Linux operating system
Button type: Mechanical
Interoperability: ONVIF
Network protocol: SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP

Basically
Camera: 1 / 2.8 "2MP CMOS high definition, low light / WDR / color / IR
Field of view: Horizontal: 125 °; vertical: 72 °; diagonal: 142 °
WDR: 120dB
Noise reduction: 3D noise reduction
Video compression: H.264
Video resolution: Main stream: WVGA, 720P, D1 Additional stream: CIF, WVGA, QVGA, 1080P, D1
Frame rate: 25 frames per second
Bit rate: 256K to 4M
Light compensation: Automatic IR
Day / night: Automatic switching ICR
Audio compression: G.711Mu; G.711u; PCM
Audio input: 1
Audio output: Built-in speaker
Audio mode: Two-way sound
Sound enhancement: Attenuation and echo cancellation / digital noise reduction
Audio bit rate: 16KHz, 16Bit

Function
Mode of communication: Fully digital
Unlock mode: Unlock with card / application / internal display
Card type: IR card
Motion detection: Video motion detection
Auto Capture: Auto Capture can only be enabled on internal monitors
Video recording: Yes (insert the SD card into the internal monitor)
Wi-Fi: Yes
Wireless standard: IEEE802.11b / 802.11g / 802.11n
Wireless frequency range: 2.4GHz
Web configuration: Yes

Performance
Card: 10,000

The door
RS-485: 1
Electric lock: 1
Alarm input: 1
Alarm output: 1
Output power: 1
Exit button: 1
Door condition detection: 1
Lock control: 1, usually closed by default
Network: 1 network port 10M / 100M

Alarm
Tamper: Yes

General
Card reading distance: 3 cm - 5 cm
Housing: PC + acrylic
Color: Black plate and silver frame
Power supply: 12V DC 1A, standard PoE
Installation: Surface mounted installation
Certificates: CE / FCC / UL

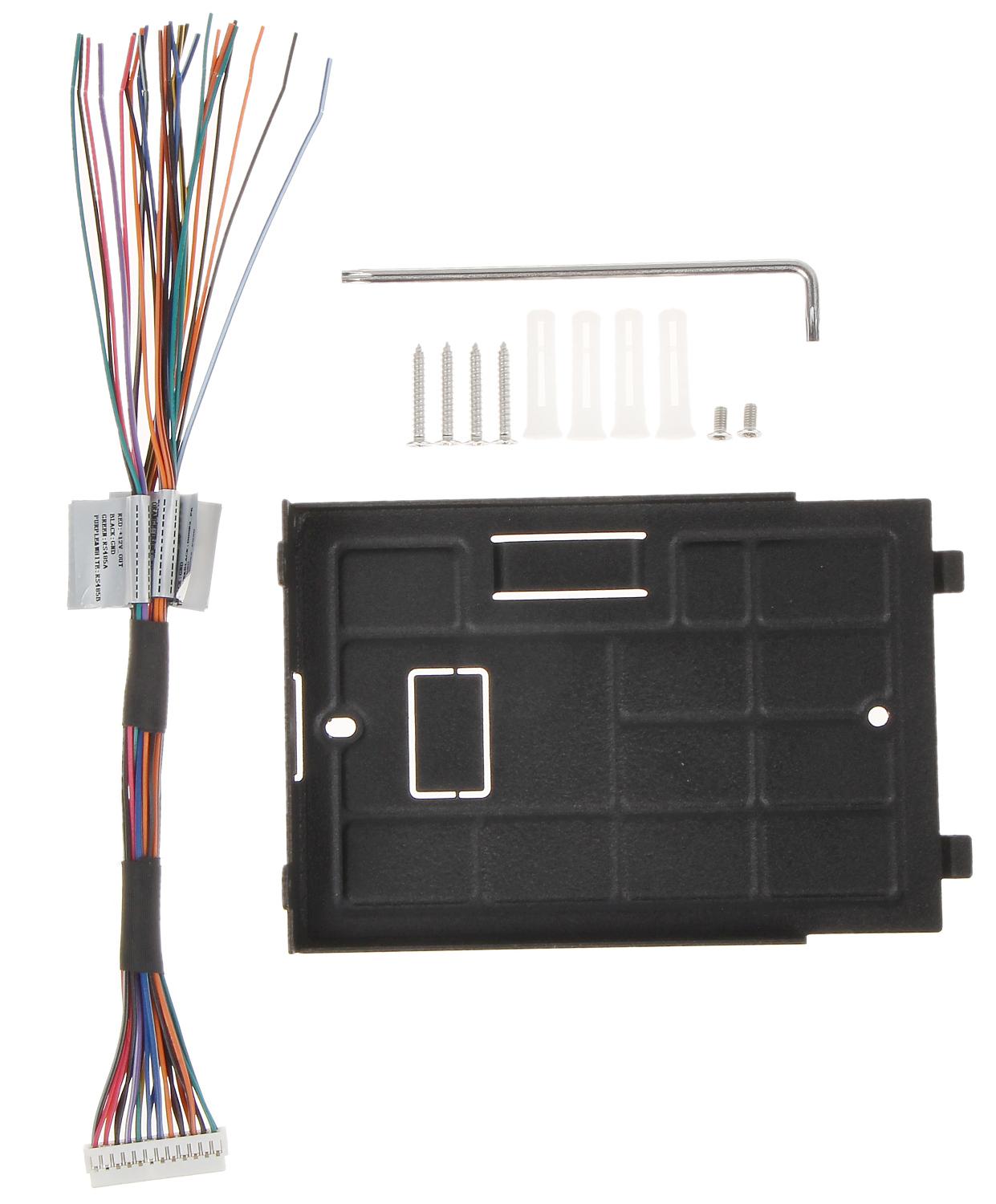

Additional equipment: Alarm brackets and cable
Dimensions: 150 mm × 100 mm × 24.8 mm
Degree of protection: IP65 (silicone sealant required, see manual)
Operating temperature: -30 ° C to + 60 ° C
Operating humidity: 10% RH - 90% RH (no condensation)
Work environment: Outdoors
Elevation: Below 3000 m
Power consumption: In standby ≤1W, during operation ≤7W
Gross weight: 490 g

VDO2001G-WP navodila
