-20,00%

36,00 €

28,80 €

Zaloga : 0

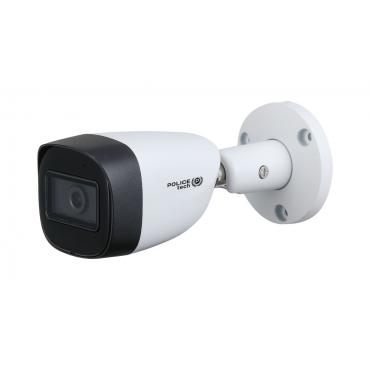

POLICETECH Q4-B5200M-S2 VIDEO SURVEILLANCE CAMERA

5Mp (2880×1620) - 25fps / Lens: 111° / IR LED range up to 30m / Min. Illumination: 0.005 LUX / Power Consumption max. 3.7W / HD/SD video output


:

> Max 25 fps@5MP (16:9 video output)
> CVI/CVBS/AHD/TVI switchable
> 2.8 mm fixed lens
> Max. IR length 30m, Smart IR
> IP67, DC12V

Camera
Image Sensor: 1/2.7 inch CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Pixel: 5MP
Scanning System: Progressive
Electronic Shutter Speed: 1/25s–1/100000s
S/N Ratio: >65 dB
Min. Illumination: 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance: 30 m
Illuminator On/Off Control: Auto; manual
Illuminator Number: 3

Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 2.8 mm
Max. Aperture:     F1.6
Field of View: 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)
Iris Type: Fixed iris
Close Focus Distance: 0.9 m

Video
Frame Rate: CVI: 5M@25 fps; 4M@25 fps; 1080P@25 fps; AHD: 4M@25 fps; TVI: 4M@25 fps; CVBS: 960H;
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
Day/Night: Auto switch by ICR
BLC: BLC/HLC/DWDR
WDR: DWDR
White Balance:     Auto; manual
Gain Control: Auto; manual
Noise Reduction: 2D NR
Smart IR: Yes
Mirror:     Off/On
Privacy Masking: Off/On (8 area, rectangle)

Certifications
CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power
Power Supply: 12V ±30% DC
Power Consumption: Max 3.7W (12V DC, IR on)

Environment
Operating Temperature: -40°C to +60°C; <95% (non-condensation)
Storage Temperature: -40°C to +60°C; <95% (non-condensation)
Protection Grade: IP67

Structure
Casing: Metal throughout the whole casing
Camera Dimensions: 166.6mm×69.7mm×70.0mm
Net Weight: 0.33 kg
Gross Weight: 0.43 kg
