System
Main Processor: Embedded Processor
Operating System: Embedded LINUX

Perimeter Protection
Performance: 2 channels, 10 IVS for each channel
Object classification: Human/Vehicle secondary recognition for tripwire and intrusion
AI Search: Search by target classification (Human, Vehicle)

Face Recognition
Performance: Max 8 face pictures/sec processing; 2 channelS video stream face recognition, only support analog camera
Stranger Mode: Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search: Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management: Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Database Application: Each database can be applied to video channels independently .
Trigger Events: Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus
Performance: 8 channels
AI Search: Search by target classification (Human, Vehicle)

Video and Audio

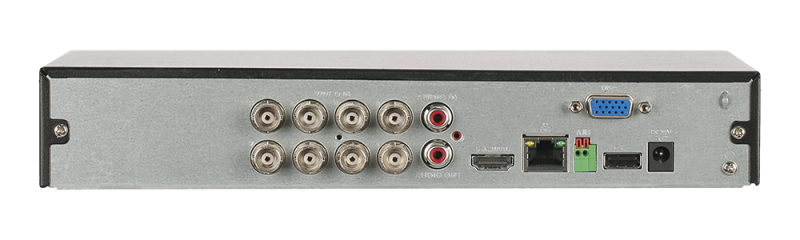

Analog Camera Input: 8 channels, BNC
HDCVI Camera Input: 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input: 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input: 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input: PAL/NTSC
IP Camera Input: 8+4 channels, each channel up to 6MP
Audio In/Out: 1/1, RCA
Two-way Talk: Reuse audio in/out, RCA

Recording
Compression: AI Coding/H.265+/H.265/H.264+/H.264
Resolution: 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate: Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/D1/CIF (1fps–25/30fps); Sub stream: D1/CIF (1fps–15fps)
Bit Rate: 32 Kbps–6144 Kbps Per Channel
Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression: G.711A, G.711U, PCM
Audio Sample Rate: 8 KHz, 16 bit Per Channel
Audio Bit Rate: 64 Kbps Per Channel

Display
Interface: 1 HDMI ,1 VGA
Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/16
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network
Interface: 1 RJ-45 Port (100 MB)
Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
Interoperability: ONVIF 16.12, CGI Conformant

Video Detection and Alarm
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Playback and Backup
Playback: 1/4
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network

Storage
Internal HDD: 1 SATA Port, up to 10TB capacity
eSATA: /

Auxiliary Interface
USB: 2 USB Ports (USB 2.0)
RS485: 1 Port, for PTZ Control
RS232: /

Electrical
Power Supply: DC 12V/2A
Power Consumption (Without HDD): <7W

Construction
Dimensions: Compact 1U, 260 mm × 238 mm × 48 mm
Net Weight (without HDD): 1.0 kg
Gross Weight: 1.1 kg
Installation: Desktop installation

Environmental
Operating Conditions: -10°C to +55°C, 0–90% RH
Storage Conditions: -20°C to +70°C, 0–90% RH

Third-party Support
Third-party Support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
