Camera
Image Sensor: 1/3” 4Megapixel progressive CMOS
Effective Pixels: 2688 (H) × 1520 (V)
ROM: 128 MB
RAM: 128 MB
Scanning System:  Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
Min. Illumination: 0.008 Lux@F1.6
IR Distance: 30 m
IR On/Off Control: Auto/Manual
IR LEDs Number: 1

Lens
Lens Type: Fixed
Mount Type: M12
Focal Length: 2.8 mm
Max. Aperture:     F1.6
Field of View: Horizonal: 102.0°, Vertical: 55.0°, Diagonal: 121.0°
Iris Type: Fixed aperture
Close Focus Distance: 0.9 m
Smart event
General IVS Analytics: Intrusion; tripwire

Video

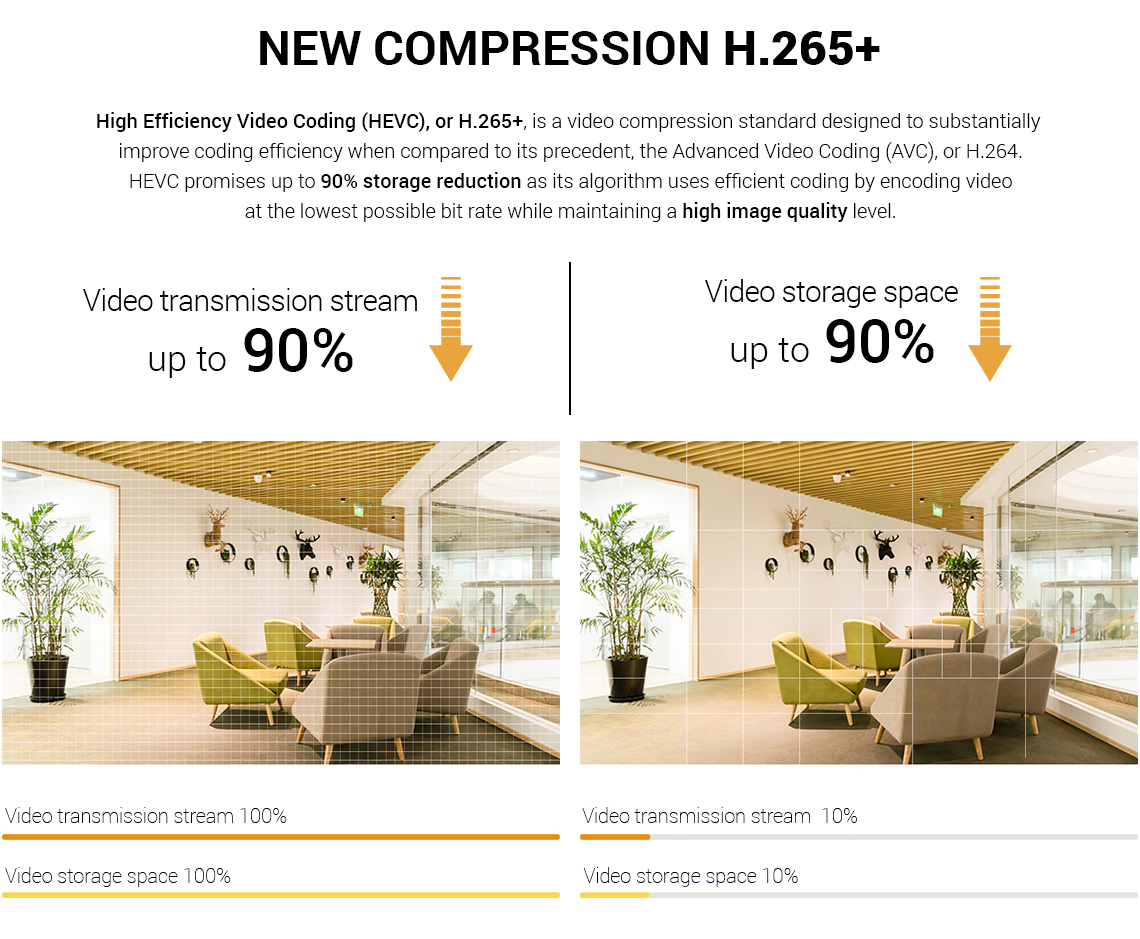

Video Compression: H.265; H.264; H.264B; MJPEG
Smart Codec: Yes
Video Frame Rate: Main stream: 2688 × 1520 (1 fps-20 fps), 2560 × 1440 (1 fps-25/30 fps) ; Sub stream: 704 × 576 (1 fps-25 fps), 704 × 480 (1 fps-30 fps)
Stream Capability: 2 stream
Resolution: 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest(RoI): Yes (4 areas)
Smart IR: Yes
Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)
Mirror: Yes
Privacy Masking: 4 areas

Network
Network: RJ-45 (10/100 Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability: ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
User/Host: 20
Edge Storage: Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser: IE, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS
Mobile Phone: IOS; Android

Power
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: < 5W

Environment
Operating Conditions: -40°C to +60°C / less than ≤ 95%
Storage Temperature: -40°C to + 60°C
Protection Grade: IP67

Structure
Casing: Metal
Dimensions: 166.2 mm × Φ70 mm
Net Weight: 0.48 kg
