Camera
Image Sensor: 1/3” 4Megapixel progressive CMOS
Max. Resolution: 2688 (H) × 1520 (V)
ROM: 128 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.008 Lux@F1.5
Illumination Distance: 60 m
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 4 (IR LED)

Lens
Lens Type: Fixed-focal
Focal Length: 2.7 mm–13.5 mm
Max. Aperture: F1.5
Field of View: Horizontal 104°–27° × Vertical 55°–15° × Diagonal 124°–31°
Iris Type: Fixed
Close Focus Distance: 0.8 m

Smart Event
IVS: Tripwire; intrusion

Video
Video Compression: H.265; H.264; H.264B; MJPEG (only supported by sub stream)
Smart Codec: Smart H.265+/ Smart H.264+
Video Frame Rate: Main stream: 2688 × 1520 (1 fps–20 fps), 2560 × 1440 (1 fps–25/30 fps) ; Sub stream: 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps)
Stream Capability: 2 streams
Resolution: 2688×1520 (2688×1520); 2560×1440 (2560×1440); 3M (2048×1536); 2304×1296 (2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240)
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest(RoI): Yes (4 areas)
Smart Illumination: Yes
Image Rotation: 0°/90°/180°/270°
Mirror: Yes
Privacy Masking: 4 areas

Network
Network: RJ-45 (10/100 Base-T)
SDK and API: Yes
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host: 20

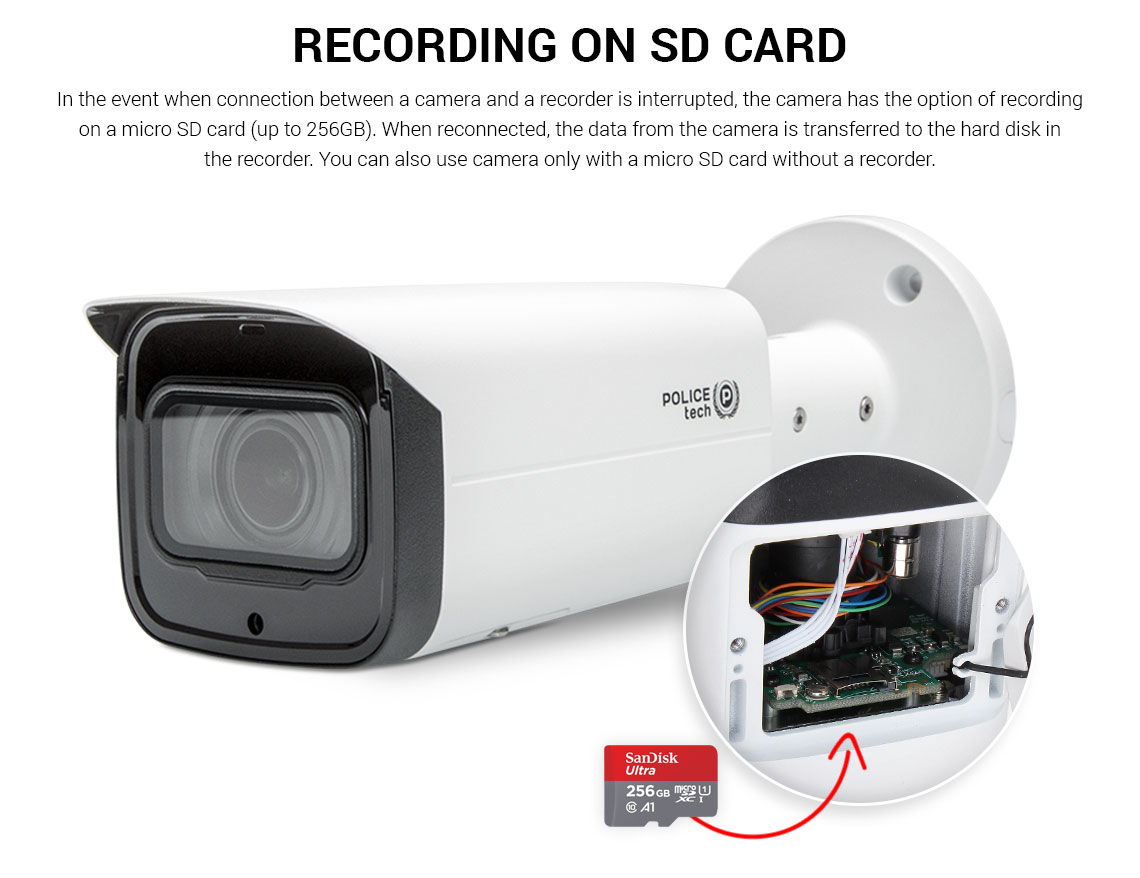

Edge Storage: Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser: IE, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS
Mobile Phone: IOS; Android

Certification
Certifications: CE-LVD: EN60950-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: < 9.6W

Environment
Operating Conditions: -30°C to +60°C /less than ≤ 95% RH
Protection Grade: IP67

Structure
Casing: Metal
Dimensions: 244.1 mm × Φ90.4 mm
Net Weight: 0.86 kg
