-25,00%

90,00 €

67,50 €

Zaloga : 500+

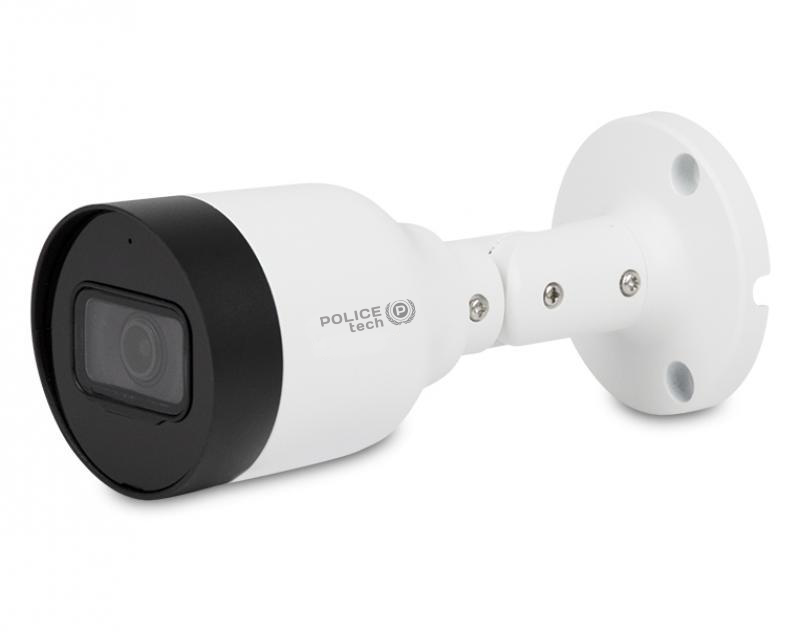

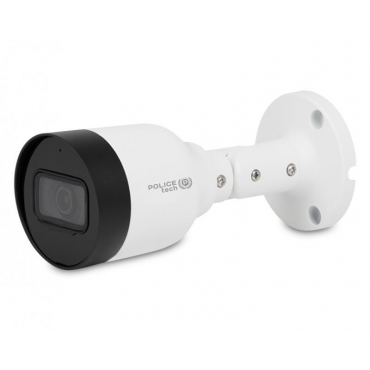

POLICEtech IPC-B8301S IP VIDEO SURVEILLANCE CAMERA

8Mp (3840 × 2160) - 15fps / Lens 105° / Min. Illumination: 0.04 LUX / IR LED range up to 30m / Power Consumption max. 4.4W

> 8MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840 × 2160) @15 fps and supports 2688 × 1520 (2688 × 1520) @25/30 fps
> H.265 codec, high compression rate, and ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict, and illegal access.
> Built-in MIC.
> 12 V DC/PoE power supply.
> IP67 protection.


Camera
Image Sensor: 1/2.7" CMOS
Max. Resolution: 3840 (H) × 2160 (V)
ROM: 16 MB
RAM: 256 MB
Scanning System:  Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.04 Lux@F2.0 (Color, 30 IRE); 0.004 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on)
S/N Ratio: > 56 dB
Illumination Distance: 30 m (IR)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 1 (IR LED)

Lens
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm
Max. Aperture:    F2.0
Field of View: Horizontal: 105°; Vertical: 56°; Diagonal: 125°
Iris Control: Fixed
Close Focus Distance: 1.0 m
DORI Distance:  Detect: 74.7m; Observe: 29.9 m; Recognize: 14.9 m; Identify: 7.5m

Video
Video Compression: H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec: Smart H.265+; Smart H.264+
Video Frame Rate: Main stream:3840 × 2160 (1 fps–15 fps). 2688 × 1520 (1 fps–25/30 fps); Sub stream: 704 × 576 (1 fps–25 fps), 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability: 2 streams
Resolution: 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control: CBR/VBR
Video Bit Rate:     H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: DWDR
White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control: Auto; manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Smart Illumination: Yes
Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror:     Yes
Privacy Masking: 4 areas

Audio
Built-in MIC: Yes
Audio Compression: G.711a; G.711Mu; G.726; PCM

Alarm
Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Network
Network Port: RJ-45 (10/100 Base-T)
SDK and API: Yes
Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Interoperability: ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
User/Host: 6 (Total bandwidth: 48 M)
Storage: FTP
Browser: IE, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS
Mobile Client: IOS; Android

Certification
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: Basic: 2.4W (12V DC); 2.9W (PoE); Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 4.4W (12V DC); 5.2W (PoE)

Environment
Operating Temperature: –40°C to +60°C
Operating Humidity: ≤95%
Storage Temperature: –40°C to +60°C
Protection: IP67

Structure
Casing: Metal
Product Dimensions: 162.1 mm × Φ70.1 mm
Net Weight: 0.32 kg
Gross Weight: 0.45 kg
