115,00 €
Zaloga : 500+

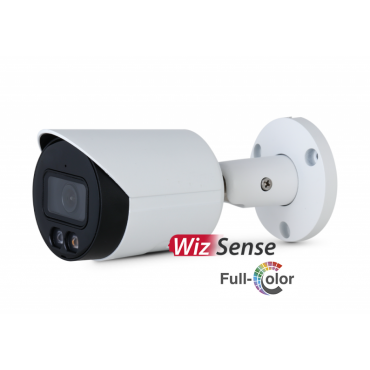

8Mp (3840 × 2160) - 20fps / Lens 111° / Min. Illumination: 0.008 LUX / IR LED range up to 30m / Power consumption max. 5.9W / IVA (Tripwire, intrusion) / SMD plus
> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
Camera
Image Sensor: 1/2.7" CMOS
Max. Resolution: 3840 (H) × 2160 (V)
ROM: 128 MB
RAM: 256 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.008 lux@F1.6 (Color, 30 IRE), 0.0008 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio: >56 dB
Illumination Distance: 30 m (IR); 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control: Auto; Manual
Illuminator Number: 1 (IR LED); 1(Warm light)
Lens
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 3.6 mm
Max. Aperture: F1.6
Field of View: H: 87°; V: 49°; D: 100°
Iris Control: Fixed
Close Focus Distance: 1.9 m
DORI Distance: Detect: 98.7 m; Observe: 39.5 m; Recognize: 19.7 m; Identify: 9.9 m
Intelligence
IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec: Smart H.265+; Smart H.264+
Video Frame Rate: Main stream: 3840 × 2160 @(1–20 fps )/2688 × 1520@(1–25/30 fps), sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability: 2 streams
Resolution: 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control: CBR/VBR
Video Bit Rate: H.264: 32 kbps–8192 kbps, H.265: 12 kbps–8192 kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control: Auto; Manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Smart Illumination: Yes
Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower)
Mirror: Yes
Privacy Masking: 4 areas
Audio
Built-in MIC: Yes
Audio Compression: G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network Port: RJ-45 (10/100 Base-T)
SDK and API: Yes
Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host: 20 (Total bandwidth: 48 M)
Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser: IE, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS
Mobile Client: iOS; Android
Cyber Security: Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
Certifications:
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply: 12 VDC/PoE (802.3af)
Power Consumption: Basic: 2.7 W (12 VDC); 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 5 W (12 VDC); 5.9 W (PoE)
Environment
Operating Temperature: –40 °C to +55 °C
Operating Humidity: ≤95%
Storage Temperature: –40 °C to +60 °C
Storage Humidity: ≤95%
Protection: IP67
Structure
Casing Material: Metal
Product Dimensions: 166.2 mm × 70 mm × 70 mm (L × W × H)
Net Weight: 0.47 kg
Gross Weight: 0.59 kg
