Camera
• Image Sensor: 1/2.7" CMOS
• Max. Resolution: 3840 (H) × 2160 (V)
• ROM: 128 MB
• RAM: 256 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto / Manual 1/3 s–1/100,000 s
• Min. Illumination:
    – 0.008 lux@F1.6 (Color, 30 IRE)
    – 0.0008 lux@F1.6 (B/W, 30 IRE)
    – 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance:
    – Up to 30 m (IR)
    – Up to 30 m (Warm light)
• Illuminator On/Off Control: Auto; Manual
• Illuminator Number: 3 (IR LED); 4 (Warm light)
• Angle Adjustment:
    – Pan: 0°–355°
    – Tilt: 0°–65°
    – Rotation: 0°–355°

Lens
• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm
• Max. Aperture: F1.6
• Field of View: H: 108°; V: 60°; D: 127°
• Iris Control: Fixed
• Close Focus Distance: 1.4 m

DORI Distance
– Detect: 82.1 m
– Observe: 32.9 m
– Recognize: 16.4 m
– Identify: 8.2 m
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4). The values do not reflect intelligent function distances.

Intelligence
• Human Detection: supports classification and accurate detection of human
• Smart Search:
    – Works together with Smart NVR
    – Supports refined intelligent search, event extraction and event video merging

Video
• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
• Smart Codec: Smart H.265+; Smart H.264+
• Video Frame Rate:
    – Main stream: 3840 × 2160 @(1–20 fps); 2688 × 1520 @(1–25/30 fps)
    – Sub stream: 704 × 576 @(1–25 fps); 704 × 480 @(1–30 fps)
Frame rates listed are maximum per stream and depend on total encoding capacity.
• Streaming Capability: 2 streams
• Resolution:
    – 8M (3840 × 2160)
    – 6M (3072 × 2048)
    – 5M (3072 × 1728)
    – 4M (2880 × 1620 / 2688 × 1520)
    – 3M (2048 × 1536 / 2304 × 1296)
    – 1080p (1920 × 1080)
    – 1.3M (1280 × 960)
    – 720p (1280 × 720)
    – D1 (704 × 576 / 704 × 480)
    – VGA (640 × 480)
    – CIF (352 × 288 / 352 × 240)
• Bit Rate Control: VBR; CBR
• Video Bit Rate:
    – H.264: 32 kbps–8192 kbps
    – H.265: 12 kbps–8192 kbps
• Day/Night: Auto (ICR) / Color / B/W
• BLC: Yes
• HLC: Yes
• WDR: DWDR
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto / Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF / ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Smart Dual Light: Yes
• Image Rotation: 0° / 90° / 180° / 270°
    – Supports 90° / 270° with 2688 × 1520 resolution and lower
• Mirror: Yes
• Privacy Masking: 4 areas

Audio
• Built-in MIC: Yes, built-in Mic
• Audio Compression: G.711a; G.711Mu; PCM; G.726

Alarm
• Alarm Event:
    – Network disconnection
    – IP conflict
    – Illegal access
    – Motion detection
    – Video tampering
    – Audio detection
    – SMD (human)
    – Security exception

Network
• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Network Protocol:
    – IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP
    – SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
    – P2P; Auto Registration
• Interoperability: ONVIF (Profile S & Profile T); CGI
• User/Host: 20 (Total bandwidth: 48 M)
• Storage: FTP

Browser
• IE
• Chrome
• Firefox

Management
• Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care
• Mobile Client: iOS; Android

Security
• Digest; WSSE; Account lockout; Security logs
• Generation and importing of X.509 certification
• HTTPS; Trusted boot; Trusted execution; Trusted upgrade

Certification
• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power
• Power Supply: 12 VDC; PoE (802.3af)
• Power Consumption:
    – Basic: 2.5 W (12 VDC); 3.3 W (PoE)
    – Max.: 7 W (12 VDC); 8.3 W (PoE)
(H.265 + intelligence on + DWDR + illuminator intensity)

Environment
• Operating Temperature: –40 °C to +60 °C
• Operating Humidity: ≤95% (RH), non-condensing
• Storage Temperature: –40 °C to +60 °C
• Storage Humidity: ≤95% (RH), non-condensing
• Protection: IP67; IK08

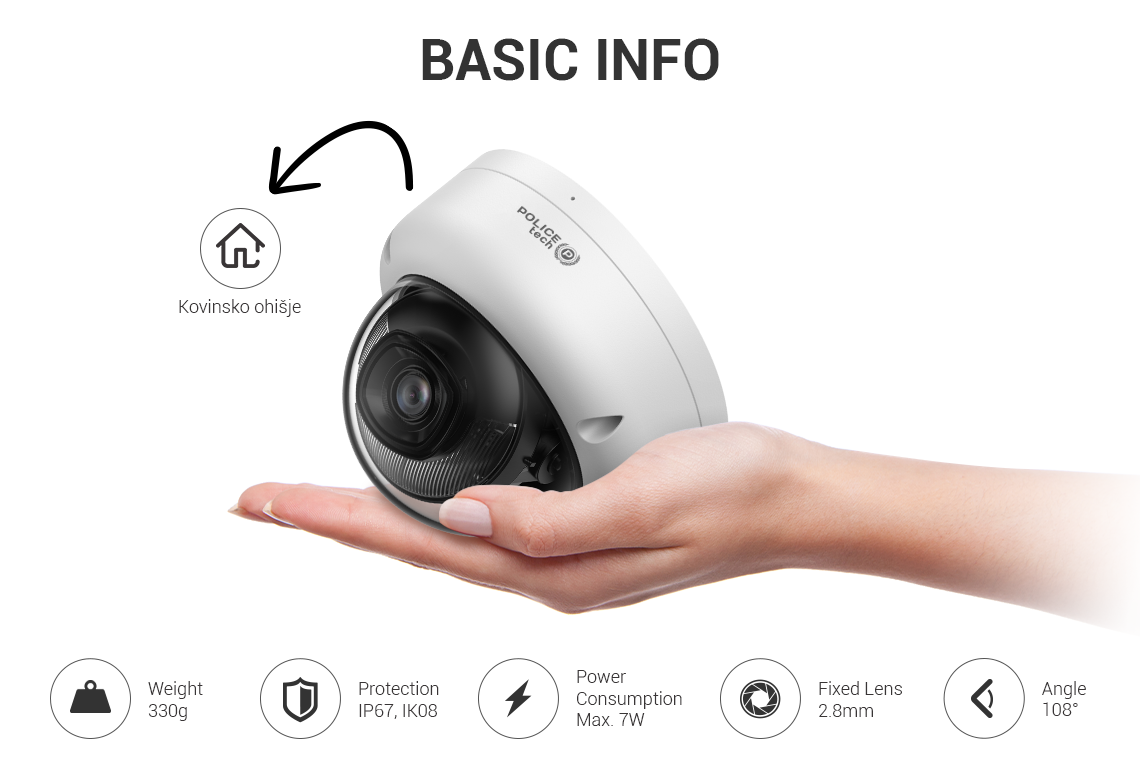

Structure
• Casing Material: Metal + plastic
• Product Dimensions: 81.0 mm × Φ109.9 mm
• Net Weight: 0.33 kg
• Gross Weight: 0.47 kg
