> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD.
> AI by Camera supports perimeter protection and SMD.
> Supports one-click arming and disarming.

System
•    Main Processor: Industrial-grade processor
•    Operating System: Embedded Linux
•    Operating Interface: Web, Local GUI

AI
•    AI by Recorder: SMD
•    AI by Camera: Perimeter protection, SMD

Perimeter Protection
•    Perimeter Performance of AI by Camera (Number of Channels): All channels (4 targets/s)

SMD Plus
•    SMD Plus by Recorder:
4 channels – Secondary filtering for human and motor vehicle detection, reducing false alarms caused by leaves, rain, and lighting condition changes.
•    SMD Plus by Camera:
All channels (8 targets/s)

Audio and Video
•    Access Channel: 8 channels
•    Network Bandwidth: 80 Mbps incoming, 80 Mbps recording, 60 Mbps outgoing
•    Supported Resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF, QCIF
•    Decoding Capability
     AI disabled:
     o    1-channel 12 MP @ 30 fps
     o    1-channel 8 MP @ 30 fps
     o    2-channel 6 MP @ 30 fps
     o    2-channel 5 MP @ 30 fps
     o    3-channel 4 MP @ 30 fps
     o    6-channel 1080p @ 30 fps
     AI enabled:
     o    1-channel 8 MP @ 30 fps
     o    1-channel 6 MP @ 30 fps
     o    1-channel 5 MP @ 30 fps
     o    2-channel 4 MP @ 30 fps
     o    4-channel 1080p @ 30 fps

Video Output
•    Ports: 1 HDMI, 1 VGA
•    HDMI Resolution: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
•    VGA Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720
•    Multi-screen Display: 1 / 4 / 8 / 9
•    Third-party Camera Access: ONVIF

Compression Standard
•    Video Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
•    Audio Compression: G.711a, G.711u, PCM, G726

Network
•    Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS,
IP Search (supports IP camera, DVR, NVS, etc.), P2P, Auto Registration
•    Mobile Phone Access: iOS, Android
•    Interoperability: ONVIF 23.12 (Profile T, Profile S, Profile G), CGI, SDK
•    Supported Browsers: Chrome, IE, Safari, Edge, Firefox

Recording & Playback
•    Multi-channel Playback: Up to 8 channels
•    Recording Modes: General, motion detection, intelligent, alarm
•    Backup Method: USB device or network
•    Playback Modes:
     o    Instant playback
     o    General playback
     o    Event playback
     o    Tag playback
     o    Smart playback

Alarm
•    General Alarm: Motion detection, camera external alarm, PIR alarm
•    Anomaly Alarm:
     o    No disk, disk error, low space, low quota space
     o    Network disconnection
     o    IP conflict, MAC conflict
     o    Video loss
     o    Video tampering
     o    Camera offline
•    Intelligent Alarm: Perimeter protection, SMD Plus
•    Alarm Linkage: Recording, snapshot, buzzer, log, preset, email, tour

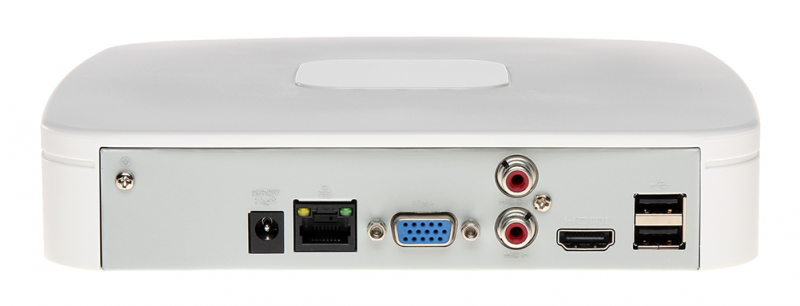

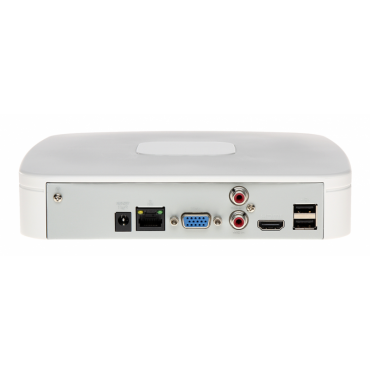

Ports
•    Audio Input: 1-channel RCA
•    Audio Output: 1-channel RCA
•    Alarm Input: Not available (optional 2 channels)
•    Alarm Output: Not available (optional 1-channel 12 V 1 A output)
•    Disk Interface: 1 SATA port – each disk up to 20 TB (depends on environment temperature)
•    USB Ports: 2 × USB 2.0 (rear)
•    HDMI: 1
•    VGA: 1
•    Network Port: 1 × 10/100 Mbps Ethernet (RJ-45)

General
•    Power Supply: 12 V DC, 1.5 A
•    Power Consumption: <10 W (without HDD)
•    Net Weight: 0.45 kg (0.99 lb)
•    Gross Weight: 1.05 kg (2.31 lb)
•    Product Dimensions (W × D × H): 204.6 × 206.4 × 45.6 mm (8.06" × 8.12" × 1.80")
•    Packaging Dimensions (W × D × H): 364.0 × 96.0 × 261.0 mm (14.33" × 3.78" × 10.28")
•    Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F)
•    Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
•    Operating Humidity: 10%–93% RH, non-condensing

Certifications
•    CE-LVD: IEC 62368-1:2014
•    CE-EMC:
     o    EN IEC 61000-3-2:2019
     o    EN 61000-3-3:2013 + A1:2019
     o    EN 55032:2015 + A11:2020
     o    EN 55035:2017 + A11:2020
     o    EN 55024:2010 + A1:2015
     o    EN 50130-4:2011 + A1:2014
