116,00 €

Zaloga : 0


8 channel up to 12Mp / Recording up to 80Mbps / 1x AI (protected area) / 4x SMD + human and vehicle detection / 1x face recognition


Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
> Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding
> 1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images; 4-channel SMD Plus (AI by NVR);
> AI by camera: Face detection and recognition, perimeter protection, and SMD Plus
> Connected to the third-party network cameras
> Security baseline 2.1

Main Processor: Industrial-grade embedded processor
Operating System: Embedded Linux
Operation Interface: Web; local GUI

AI by Camera: Face detection; face recognition; perimeter protection; SMD Plus
AI by Device: Face detection; face recognition; perimeter protection; SMD Plus

Perimeter Protection
Perimeter Performance AI by Device(Number of Channels): 1
Perimeter Performance of AI by Camera (Number of Channels): 4

Face Detection
Face Attributes: 6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
Face Detection Performance of AI by Device (1080P) (Number of Channels): 1 (up to 12 face images/second)
Face Detection Performance of AI by Camera (Number of Channels): 5

Face Recognition
Face Database Capacity: Up to 10 face databases with 5,000 images
Face Recognition Performance of AI by Device (1080P) (Number of Channels): 1 (up to 4 face images/second)
Face Recognition Performance of AI by Camera (Number of Channels): 5

SMD Plus
SMD Plus by Device: 4
SMD Plus by Camera: 6-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away

Access Channel: 8 channels
Network Bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
Decoding Capability: AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps
Video Output: 1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display: 1, 4, 8, 9 views
Third Party Camera Access: Onvif

Video: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio: PCM; G711A; G711U; G726

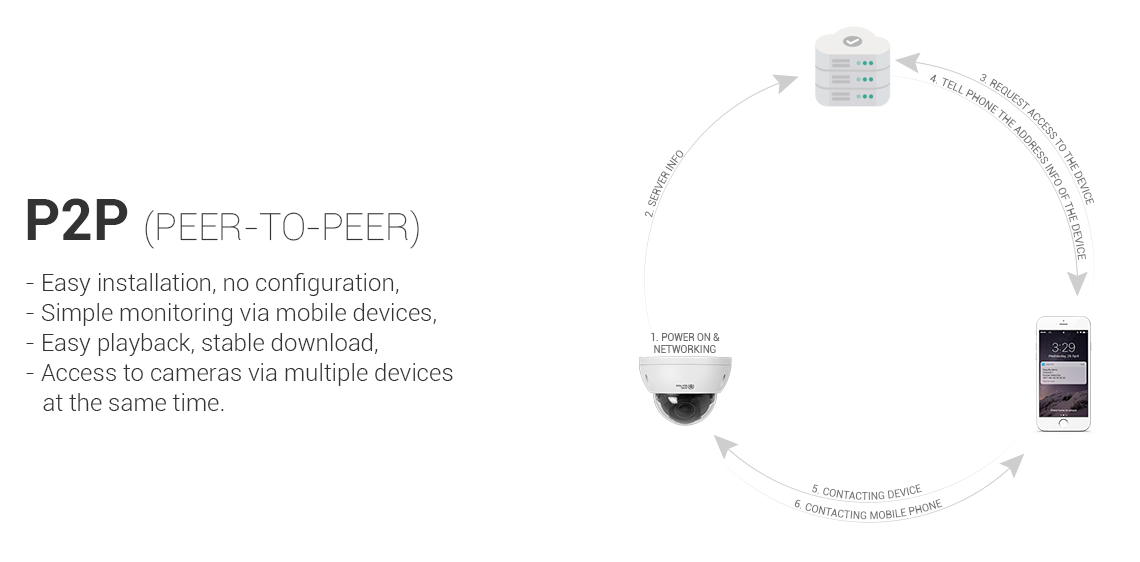

Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration

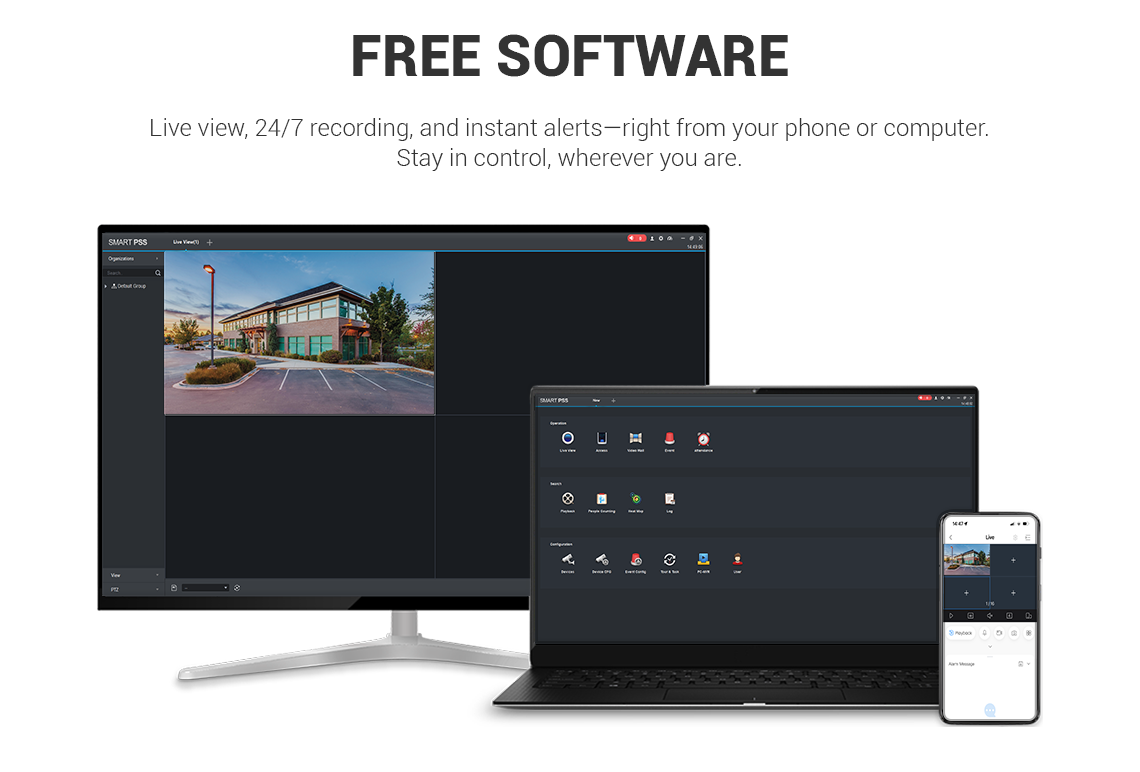

Mobile Phone Access: Android; iOS
Interoperability: ONVIF (profile T; profile S; profile G); CGI; SDK
Browser: Chrome; IE9 or later; Firefox

Record Playback
Multi-channel Playback: Up to 8 channels
Record Mode: Manual record; alarm recordings; motion detection recordings; scheduled recordings
Storage: Local HDD and network
Backup: USB device
Playback Function: 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (vide clip/file); partially zom in; audio on/off

General Alarm:Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
Anomaly Alarm: Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception

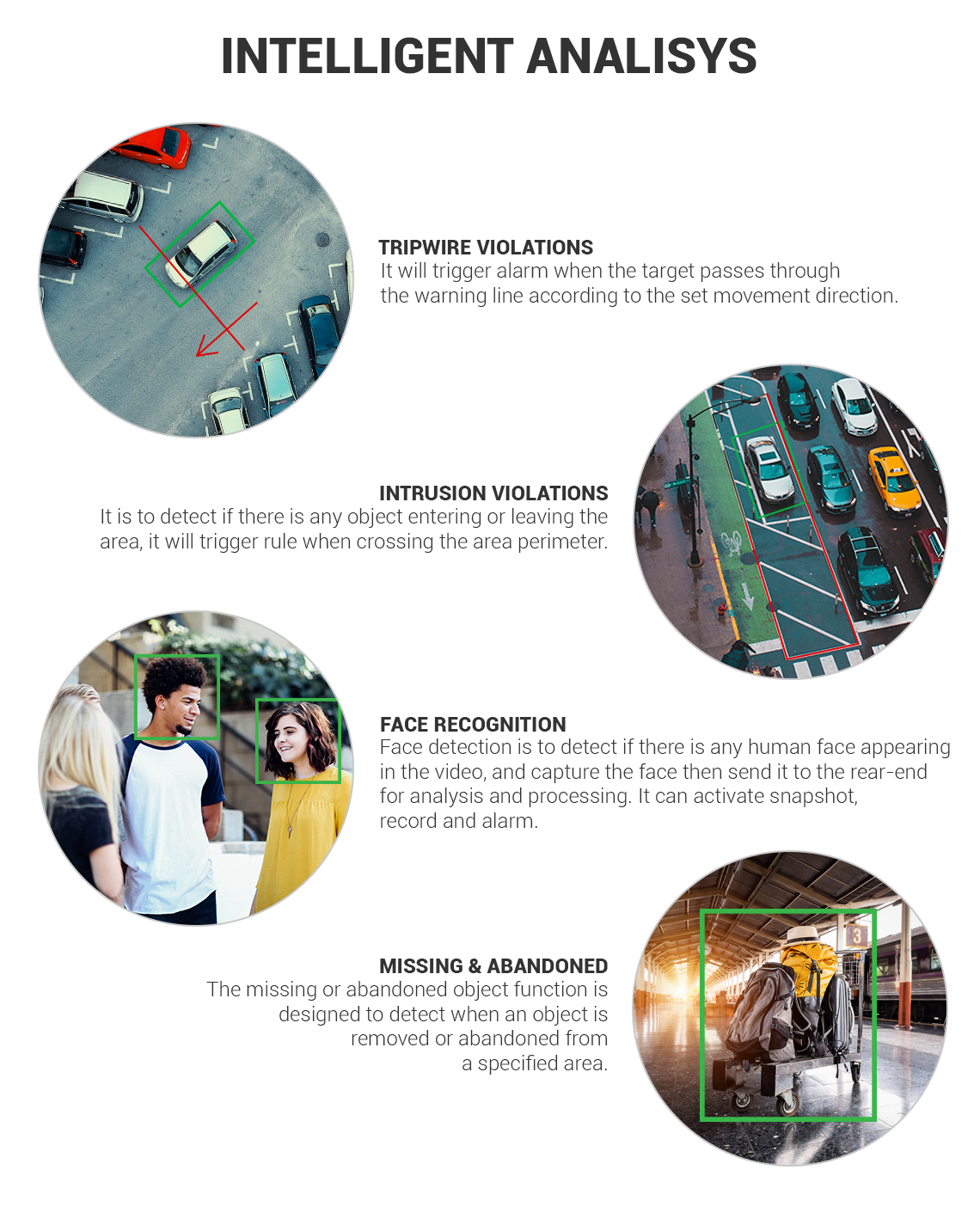

Intelligent Alarm: Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus
Alarm Linkage: Recording; snapshot; buzzer; log; preset; email; tour

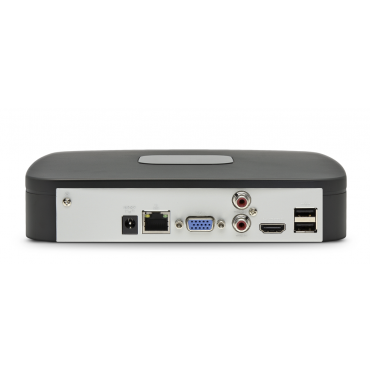

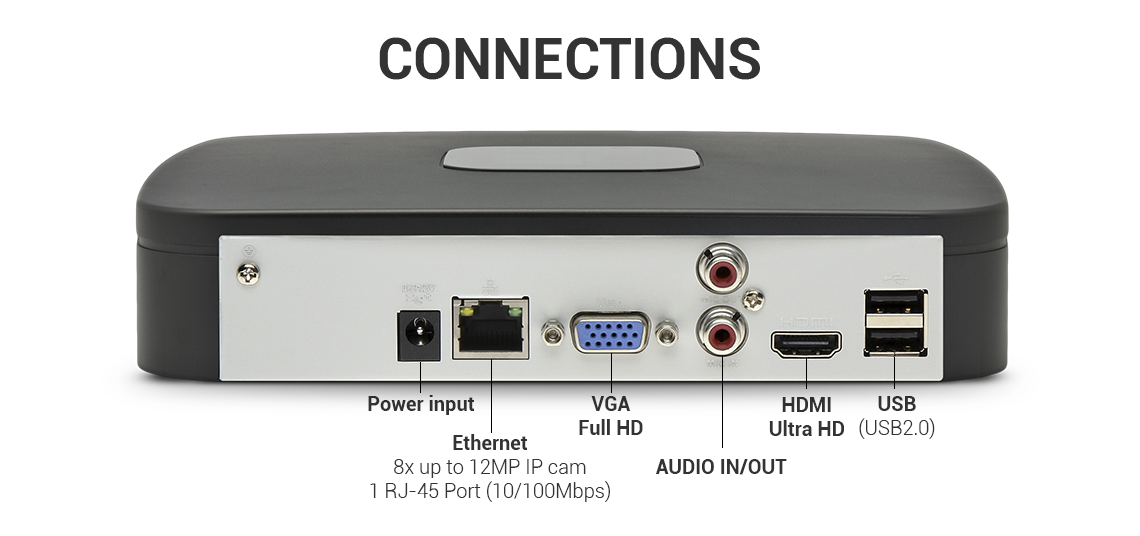

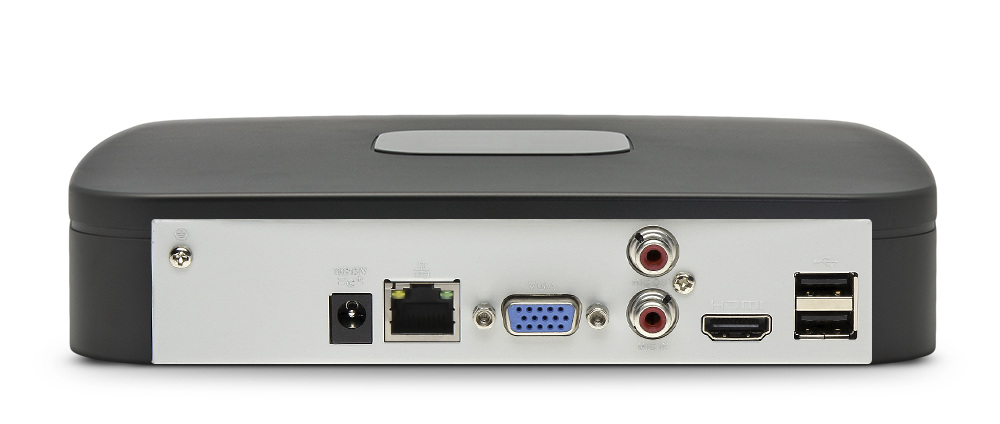

External Port
HDD: 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature
USB: 2 rear USB 2.0 ports
HDMI: 1 (max. resolution: 4K)
VGA: 1
Network: 1 × RJ-45 (10 or 100 Mbps)
RCA Input: 1
RCA Output: 1
RCA Output: 1

General Parameter
Power Supply: 12 V DC, 1.5 A
Power Consumption: Total output of NVR is ≤ 10 W (without HDD)
Net Weight: 0.45 kg
Gross weight: 1.07 kg

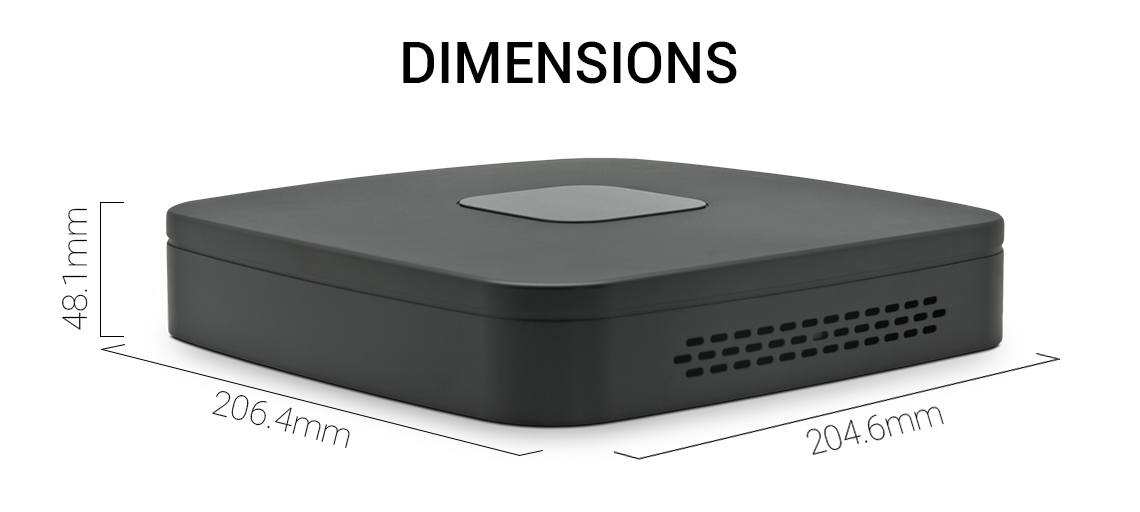

Product Dimensions:204.6 mm × 206.4 mm × 48.1 mm (W × L × H)
Package Dimensions: 96 mm × 364 mm × 261 mm (W × L × H)
Operating Temperature: –10 °C to +55 °C
Storage Temperature: 0 °C to 40 °C
Operating Humidity: 10%–93%
Storage Humidity: 30%–85%
Operating Altitude: 3,000 m (9,842.52 ft)
Installation: Desktop

FCC:47 CFR FCC Part15,SubpartB,Class A
CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014
CE-LVD:EN 62368-1:2014+A11:2017
