> Smart H.265+/H.265/Smart H.264+/H.264 decoding format
> Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding
> AI by camera: perimeter protection,and SMD Plus
> Connected to the third-party network cameras
> Security baseline 2.1

System
Main Processor: Industrial-grade embedded processor
Operating System: Embedded Linux
Operating Interface: Web; Local GUI

AI
AI by Camera: Perimeter protection; SMD Plus

Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels): 4

SMD Plus
SMD Plus by Camera: 4-channel SMD Plus (AI by camera), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video
Access Channel: 8 channels
Network Bandwidth: Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
Decoding Capability: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
Video Output: 1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display: 1, 4, 8, 9 views
Third-party Camera Access: Onvif

Compression Standard
Video Compression: Smart H.265; H.265; Smart H.264; H.264
Audio Compression: PCM; G711A; G711U; G726

Network
Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P
Mobile Phone Access: Android; iOS
Interoperability: ONVIF (profile T/S/G); CGI; SDK
Browser: Chrome; IE 9 or later; Firefox

Recording Playback
Multi-channel Playback: Up to 8 channels
Record Mode: Manual record; alarm record; motion detection record; schedule record
Storage Method: Local HDD and network
Backup Method: USB device
Playback Function: 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame; 2. Full screen; backup (video clip/file); partially zom in; audio on/off

Alarm
General Alarm: Motion detection; privacy masking; video loss; PIR alarm
Anomaly Alarm: Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Intelligent Alarm: Perimeter protection; SMD Plus
Alarm Linkage: Recording; snapshot; buzzer; log; preset; email; tour

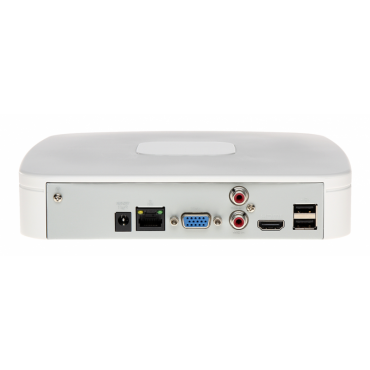

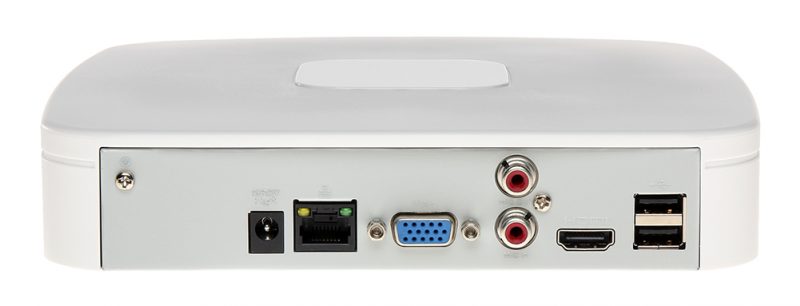

Port
Audio Input: 1
Audio Output: 1
HDD Interface: 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature
USB: 2 rear USB 2.0 ports
HDMI: 1
VGA: 1
Network Port: 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

General
Power Supply: 12 VDC, 1.5 A
Power Consumption: Total output of NVR is ≤ 10 W (without HDD)
Net Weight: 0.42 kg
Gross Weigh:  1.03 kg
Product Dimensions: 204.6 mm × 206.4 mm × 45.6 mm (W × L × H)
Packaging Dimensions: 96 mm × 364 mm × 261 mm (W × L × H)
Operating Temperature: –10 °C to +55 °C
Operating Humidity: 10%–93% (RH)
Installation: Rack or desktop
Certifications: CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4; FCC: Part 15 Subpart B
