> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
> Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
> Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding.
> AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
> AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.
> Connected to the third-party network cameras.
> Security baseline 2.3.

System
Main Processor: Industrial-grade processor
Operating System: Embedded Linux
Operating Interface: Web; Local GUI

AI
AI by Recorder: Face detection, face recognition, perimeter protection, and SMD Plus
AI by Camera: Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map

Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels): 2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels): 8 channels

Face Detection
Face Attributes: Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels): 1 channel (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels): 8 channels

Face Recognition
Face Database Capacity: Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels): 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s; 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels): 8 channels

SMD Plus
SMD Plus by Recorder: 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera: 8 channels

Audio and Video
Access Channel: 32 channels
Network Bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing; AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Resolution: 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
Decoding Capability: AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps
Video Output: 1 HDMI, 1 VGA: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display: 1st Screen: 1/4/8/9/16/25/36; 2nd Screen: 1/4/8/9/16
Third-party Camera Access: Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon

Compression Standard
Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression: G.711a; G.711u; PCM; G726

Network
Network Protocol: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search; P2P; auto register
Mobile Phone Access: iOS; Android
Interoperability: ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
Browser: Chrome; IE9 and later; Firefox

Recording Playback
Multi-channel Playback: Up to 16 channels
Record Mode: General, motion detection; intelligent; alarm
Backup Method: USB device and network
Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback

Storage
Disk Group: Yes

Alarm
General Alarm: Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm: Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm: Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage: Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email

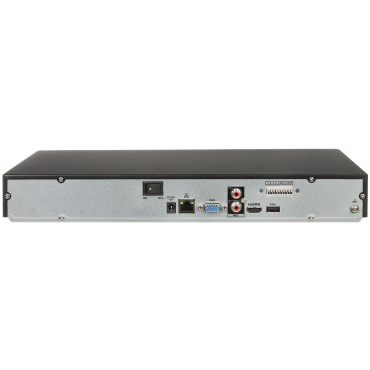

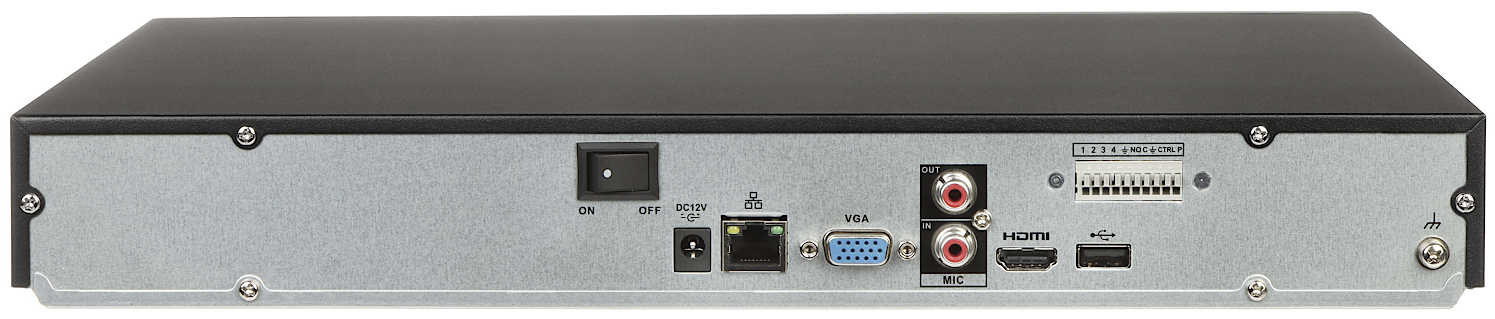

Port
Audio Input: 1-channel RCA
Audio Output: 1-channel RCA
Alarm Input: 4 channels
Alarm Output: 2 channels
HDD Interface: 2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.
USB: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI: 1
VGA: 1
Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General
Power Supply: 12 VDC, 4 A
Power Consumption: <10 W(without HDD)
Net Weight: 1.51 kg
Gross Weight: 2.76 kg
Product Dimensions: 375 mm × 284.3 mm × 53 mm (W × L × H)
Packaging Dimensions: 433 mm × 141 mm × 366 mm (W × L × H)
Operating Temperature:–10 °C to +55 °C
Storage Temperature: –20 °C to +60 °C
Operating Humidity: 10%–93% (RH)
Installation: Rack or desktop

Certifications
FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
