Camera
Image Sensor: 1/3 "CMOS
Effective Pixels: 32688x1520, 4.1MP
Electronic Shutter Speed: 1/25 ~ 1/100000s
Minimum Illumination: 0.03Lux/F2.0, 30IRE, 0Lux IR on
IR Distance: Distance up to 50m
IR On/Off Control: Auto; manual
IR LED Number: 1

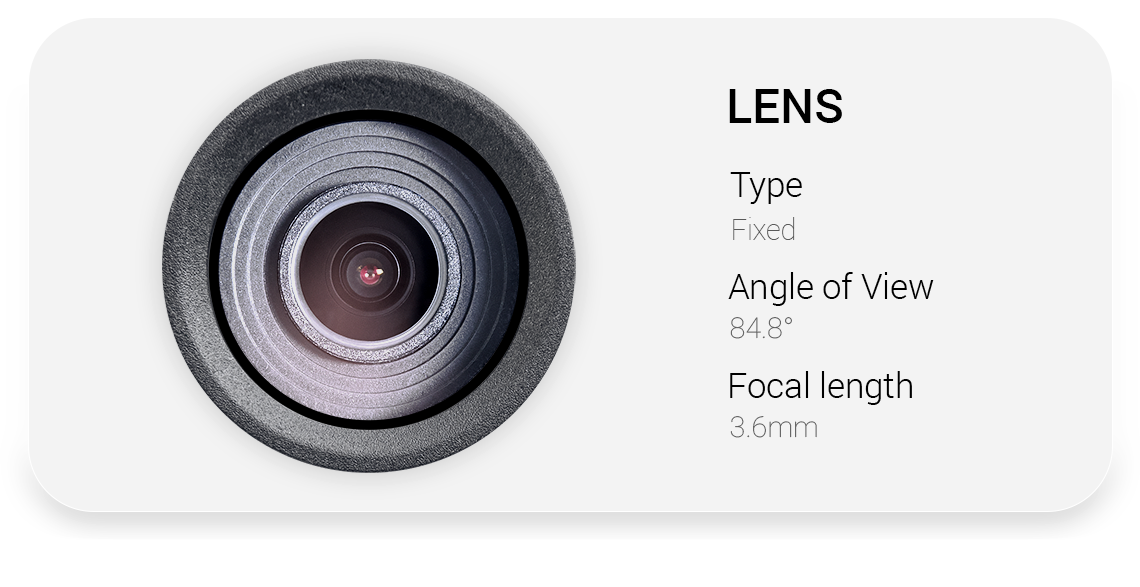

Lens
Lens Type: Fixed lens
Mount Type: Board-in
Focal Length: 3.6mm
Max. Aperture: F2.0
Angle of View: 3.6mm: 84.8°
Iris type: Fixed Iris
Najmnajša razdalja ostrenja: 1.8m

Video
Video Frame Rate: 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Resolution: 4MP (2560×1440)
Day/Night: Auto (ICR) / Manual
BLC: BLC/HLC/DWDR
WDR: DWDR
White Balance: Auto / Manual
Gain Control: AGC
Noise Reduction: 2D
Smart IR: Auto / Manual

Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Audio Port: Built-in mic

Power
Power Supply: 12V±25% DC
Power Consumption: Max 4.1W (12V DC, IR on)

Environment
Operating Temperature: -40°C to +60°C; <95% (non-condensation)
Storage Temperature: -40°C to +60°C; <95% (non-condensation)
Protection Grade: IP67

Structure
Casing: Aluminium
Dimensions: Φ106mm×93.6mm
Net Weight: 0.42kg
Gross Weight: 0.55kg
