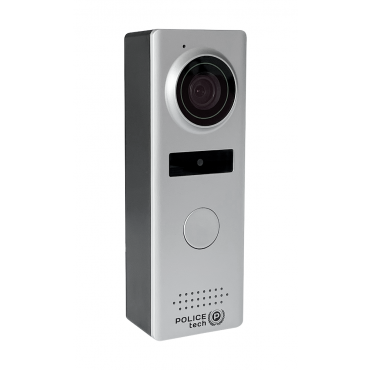

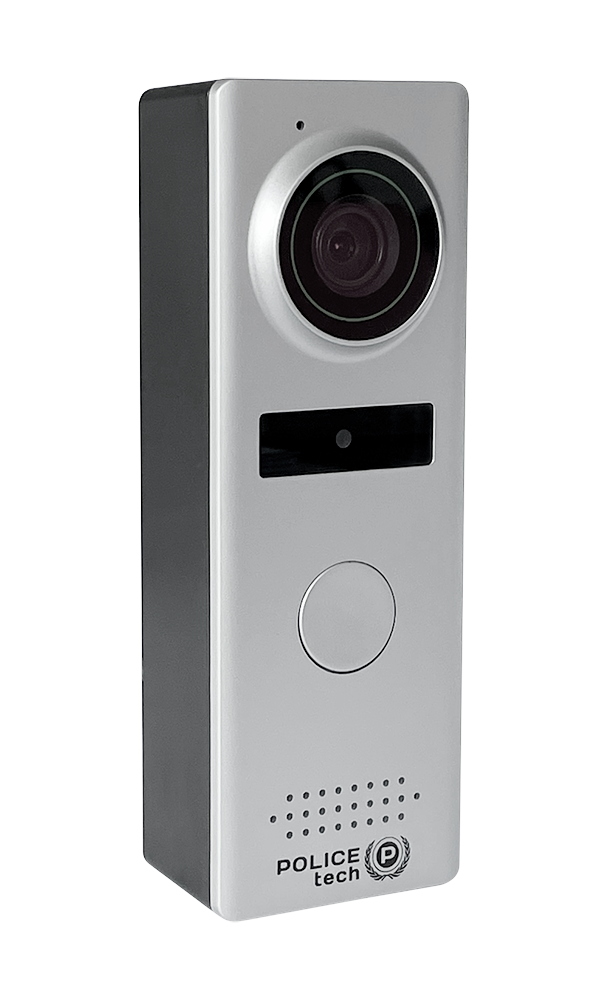

Analog Door Station
System
Button Type: Mechanical

Basic
Camera: 1.3MP CMOS
Field of View: Horizontal: 70°; Vertical: 40°
WDR: DWDR
Illuminator Type: Auto IR
Day/Night: ICR auto switch
Audio Input: 1 channel to the microphone; pickup distance 0.5 m
Audio Output: 1 channel to the speaker
Status Indicator: 1 indicator light; Green: Power on

Function
Communication Mode: Analog
Unlock Mode: Local unlock

Performance
Casing: PC + ABS

Port
Exit Button: 1
Door Status Detection: 1

General
Color: Silver
Power Supply: Powered by indoor monitor
Installation: Surface mount
Certifications: CE/FCC

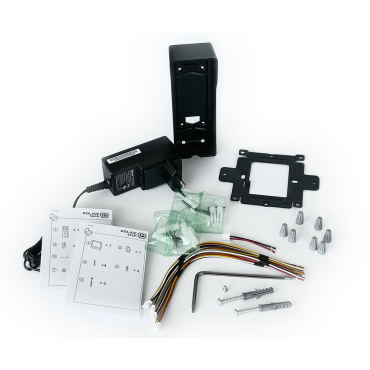

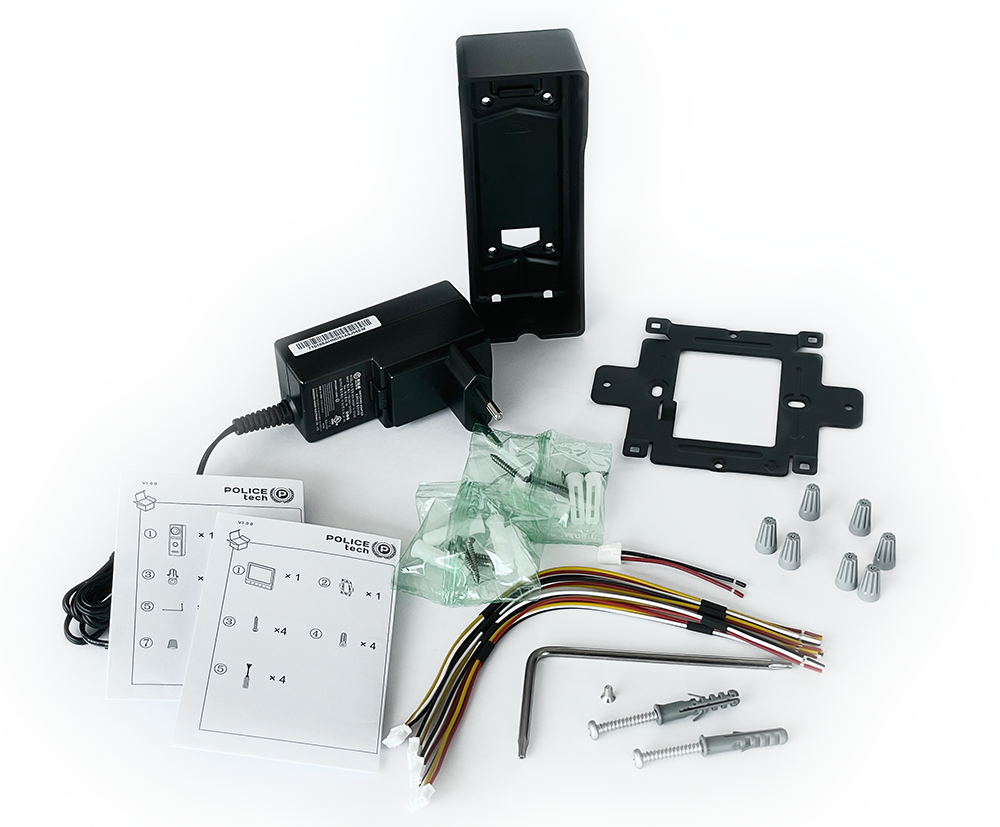

Accessory: Rain cover (included)
Dimensions: 131.45 mm × 46.00 mm × 33.80 mm
Protection Grade: IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Operating Temperature: -30°C to +60°C (-22°F to +140°F)
Operating Humidity: 10%RH–95%RH
Power Consumption: ≤ 1W (standby); ≤ 3W (working)
Net Weight: 0.18 kg
Gross Weight: 0.38 kg

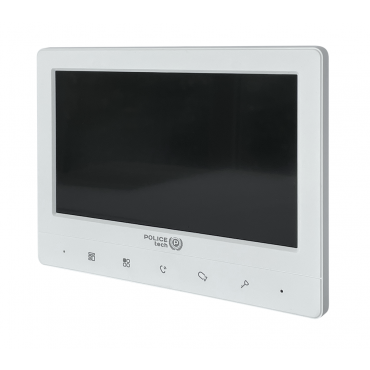

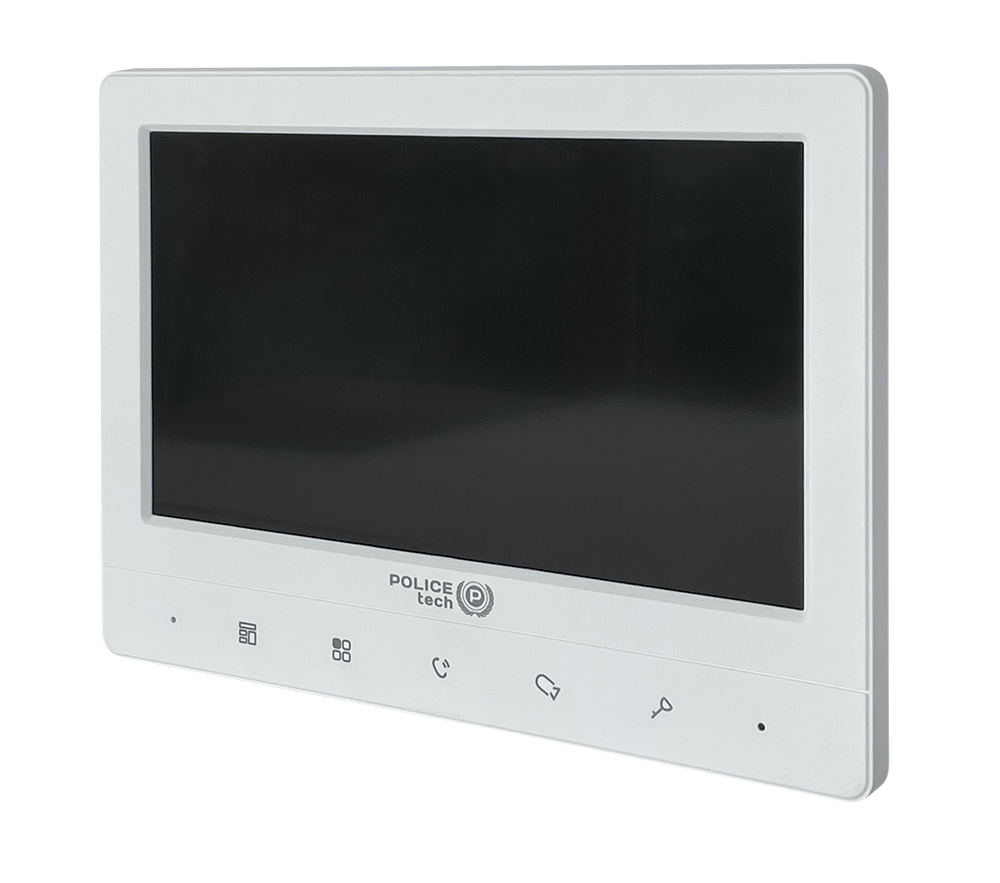

Analog Indoor Monitor
System
Button Type: Mechanical

Basic
Display: 7.0" TFT
Screen Resolution: 1204 × 600
Status Indicator: 1 indicator light; Green: Power on

Function
Communication Mode: Analog

Performance
Casing: PC + ABS

General
Color: White
Power Supply: DC 12V/2A
Installation: Surface mount
Certifications: CE/FCC
Accessory: Bracket (included)
Dimensions: 133.90 mm × 182.70 mm × 17.70 mm
Operating Temperature: -10°C to +55°C
Operating Humidity: 10%RH–95%RH
Power Consumption: ≤ 2W (standby); ≤ 5W (working)
Net Weight: 0.25 kg
Gross Weight: 0.48 kg

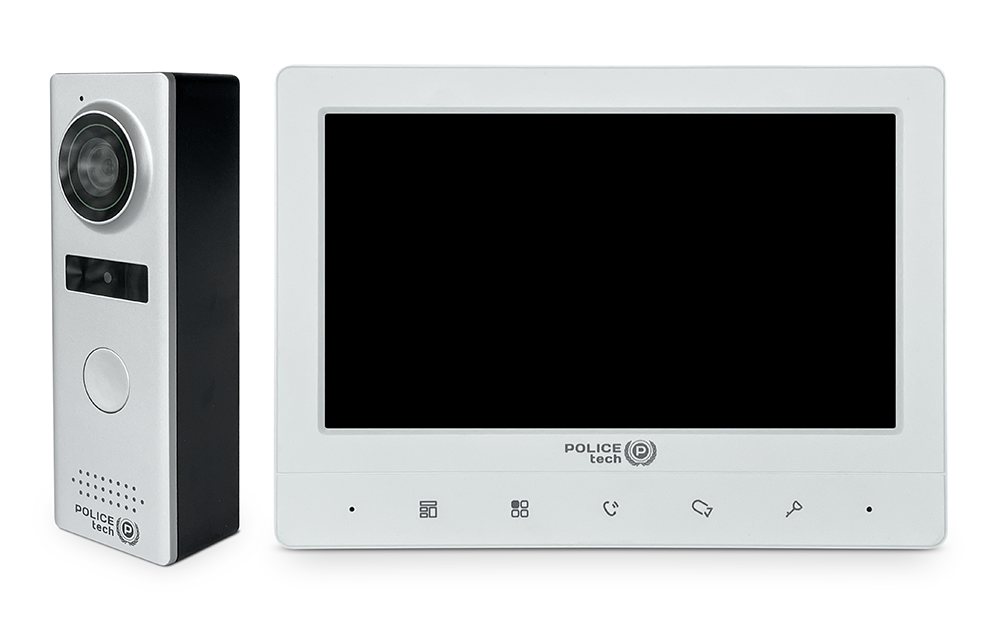

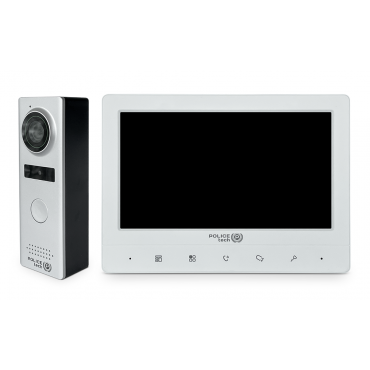

KTA02-KIT
