> Adopts the Android 14 system, offering advanced performance and a user-friendly experience.
> Featuring a sleek full-screen design with an ultra-narrow black border, this device combines style and minimalism for an exceptional visual experience.
> With its 7-inch IPS capacitive touchscreen and multi-touch technology, the screen offers wide viewing angles of up to 80 degrees both horizontally and vertically, significantly enhancing work efficiency and operational flexibility.
> Supports multiple communication modes including IP, Wi-Fi and IP four-wire.
> Includes multi-color indicators that feature the breathing light function to keep you updated on status changes.
> Wakes up automatically when a person approaches for a seamless experience.
> Equipped with a built-in light sensor, the device automatically adjusts the screen brightness for comfortable viewing.
> With its built-in temperature and humidity detectors, you can effortlessly monitor the conditions in your house at any time straight from the home screen.

System
– Main Processor: Embedded Processor
– Operating System: Android 14
– Network Protocol: IPv4, RTSP, UDP, DNS, FTP, RTP, TCP, SIP

Basic
– Screen Type: Capacitive Touchscreen
– Display Screen: 7-inch display screen
– Screen Resolution: 1024 (H) × 600 (V)
– Audio Compression: G.711a, G.711u, PCM
– Audio Input: 1 channel
– Audio Output: Built-in speaker
– Audio Mode: Two-way audio
– Audio Enhancement: Echo suppression, digital noise reduction
– Audio Bit Rate: 16 kHz, 16 bit

Function
– Communication Mode: Full digital
– Information Release: Receive and view the published information from the management center
– Elevator Control: Residents can call the elevator through this device to their floor
– Leave Videos: Yes (SD card is inserted in the indoor monitor or door station)
– DND Mode: Do not disturb period can be set
– Number of Extensions:
– Villa: 1 main VTH and 9 extensions
– Apartment: 1 main VTH and 4 extensions
– Storage: Supports micro SD card storage (up to 512 GB)

Network
– Wi-Fi: Yes
– Wireless Standard: IEEE 802.11a/b/g/n/ac/ax
– Wireless Frequency Range: 2.4 GHz

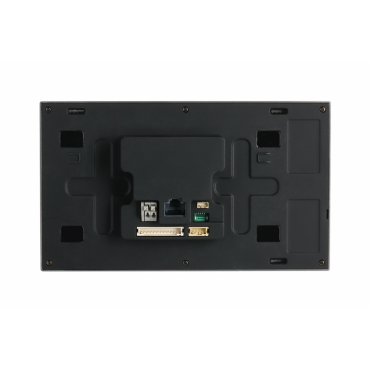

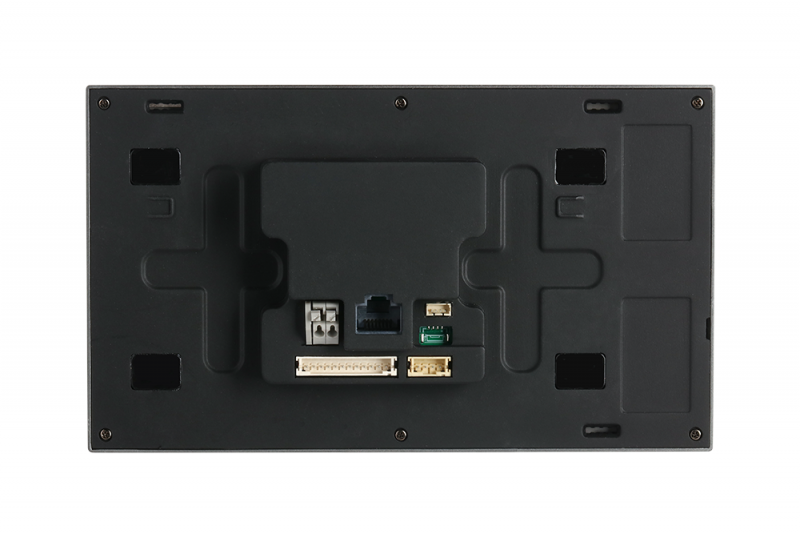

Port
– RS-485: 1
– USB: 1
– Alarm Input: 8 channels
– Alarm Output: 1 channel
– Power Output: 1 port (12 V, 200 mA)
– Door Bell: Yes (use the alarm input port)
– Network Port: 1 × 10/100 Mbps Ethernet port
– 4-wire: 1

Performance
– Casing Material: PC + ABS

General
– Appearance Color: Gray
– Power Supply: 12 VDC, 2 A; Standard PoE
– Power Adapter: Optional
– Installation: Flush Mount
– Certifications: CE

Accessory
– Included: RS-485 and power output cable, bracket, alarm cable
– Optional: Power cord

Mechanical & Environment
– Product Dimensions: 176.2 × 103.1 × 32.2 mm (H × W × D)
– Gross Weight: 785 g
– Power Consumption: ≤ 10 W (standby), ≤ 14 W (working)
– Operating Temperature: −10 °C to +55 °C
– Operating Humidity: 10 %–95 % RH, non-condensing
– Operating Altitude: Below 3,000 m
– Storage Temperature: 0 °C to +40 °C
– Storage Humidity: 30 %–75 %
– Operating Environment: Indoor
