System Parameters
Operation Method: Physical button
Operation System: Embedded Linux operation system
Flash: 32MB
RAM: 256MB

Alarm parameters
Tampering alarm: 1

Network parameters
Ethernet: 10/100 Mbps Ethernet
Network protocol: TCP/IP, RSTP
Wifi: 2.4GHz Wi-Fi (Only available in DS-KV6113-WPE1 model)

Audio parameters
Audio input: Built-in omnidirectional microphone
Audio output: Built-in loudspeaker
Audio compression standard: G.711 U
Audio compression rate: 64 Kbps
Audio quality: Noise suppression and echo cancellation

General
Power supply: IEEE802.3af, standard PoE 12 VDC
Indicator: 2
Power consumption: ＜ 10 W
Dimension (LxWxD): 174 mm × 91 mm × 29 mm
Installation: Surface mounting/ Flush mounting
Working Temperature: -40° C to 53° C(-40° F to 127.4° F)
Working Humidity: 10% to 95%
Ingress protection level: IP65

Video parameters
Camera: 2MP HD Camera
Wide dynamic range: True WDR
Video compression standard: H.264
Resolution: Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576
Night Vision: Low illumination IR supplement mode
Video streaming: Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps

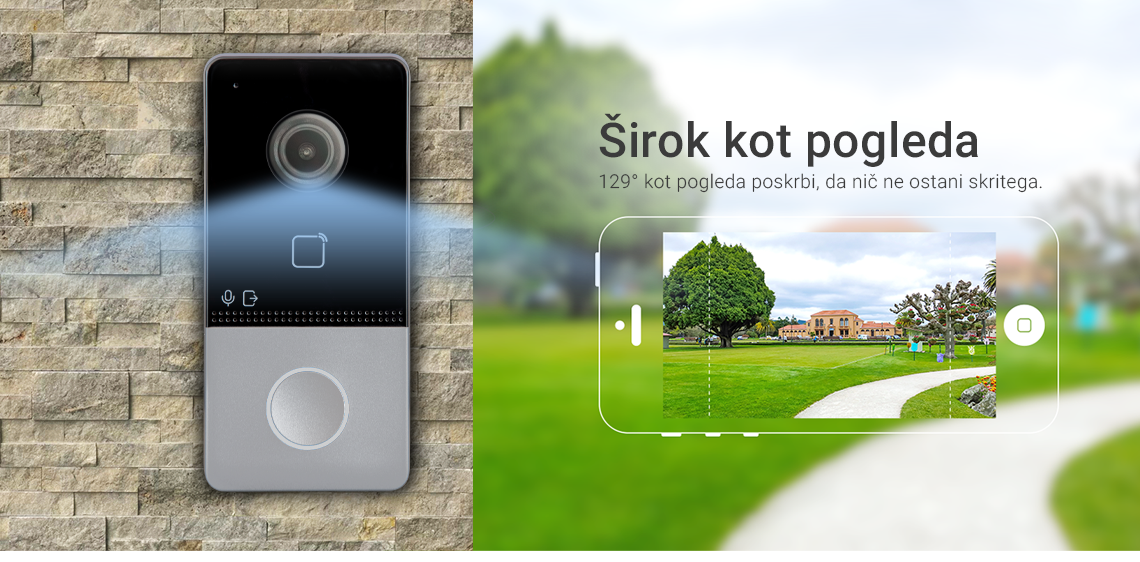

Field of view: Horizontal: 129° Vertical: 75°

Device interfaces
Alarm input: 4
Button: 1
TF card: Max to 32G
Relay For Lock: 1

Event
Motion Detection: Support

Camera parameters
BLC: Support
Field of view: Horizontal: 129° Vertical: 75°

Access Control Parameters
Internal Card Reader: 13.56 MHz Mifare Card Reader

Device Interfaces
RS-4851: 1

VDO2001-WPE
