Camera

• Image Sensor: 1/2.7" CMOS
• Max. Resolution: 3840 (H) × 2160 (V)
• ROM: 128 MB
• RAM: 256 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual, 1/3 s–1/100,000 s
• Minimum Illumination:
  • 0.008 lux @ F1.6 (Color, 30 IRE)
  • 0.0008 lux @ F1.6 (B/W, 30 IRE)
  • 0 lux (Illuminator on)
• S/N Ratio: > 56 dB
• Illumination Distance: Up to 30 m (IR and warm light)
• Illuminator On/Off Control: Auto / Manual
• Illuminator Number: 1 (Multi-core IR + warm light)
• Angle Adjustment:
  • Pan: 0°–360°
  • Tilt: 0°–90°
  • Rotation: 0°–360°

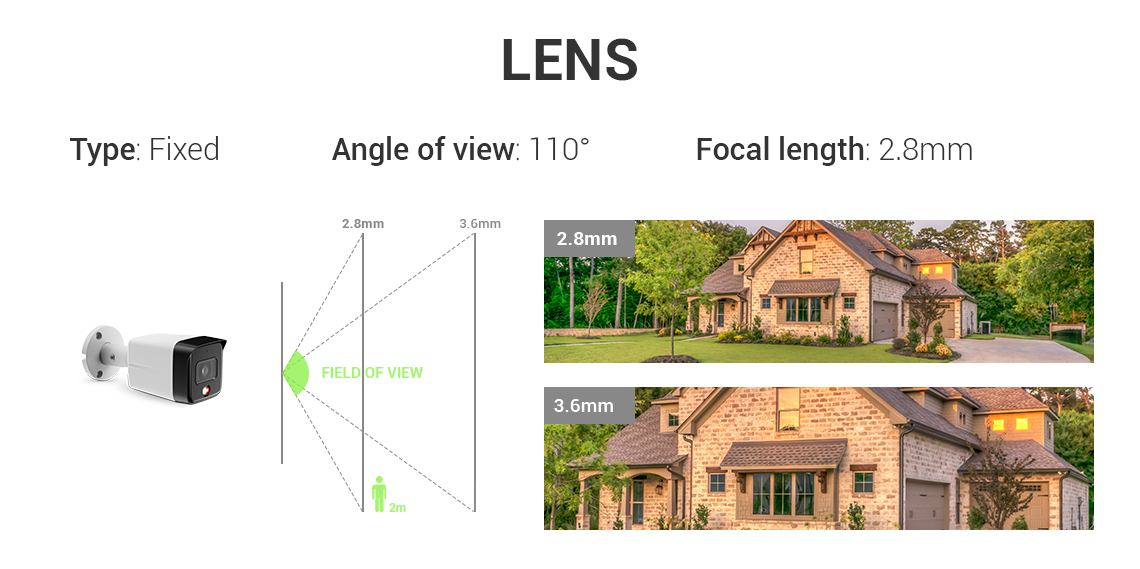

Lens

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm
• Max. Aperture: F1.6
• Field of View (2.8 mm):
  • Horizontal: 110°
  • Vertical: 58°
  • Diagonal: 132°
• Iris Control: Fixed
• Close Focus Distance: 1.5 m

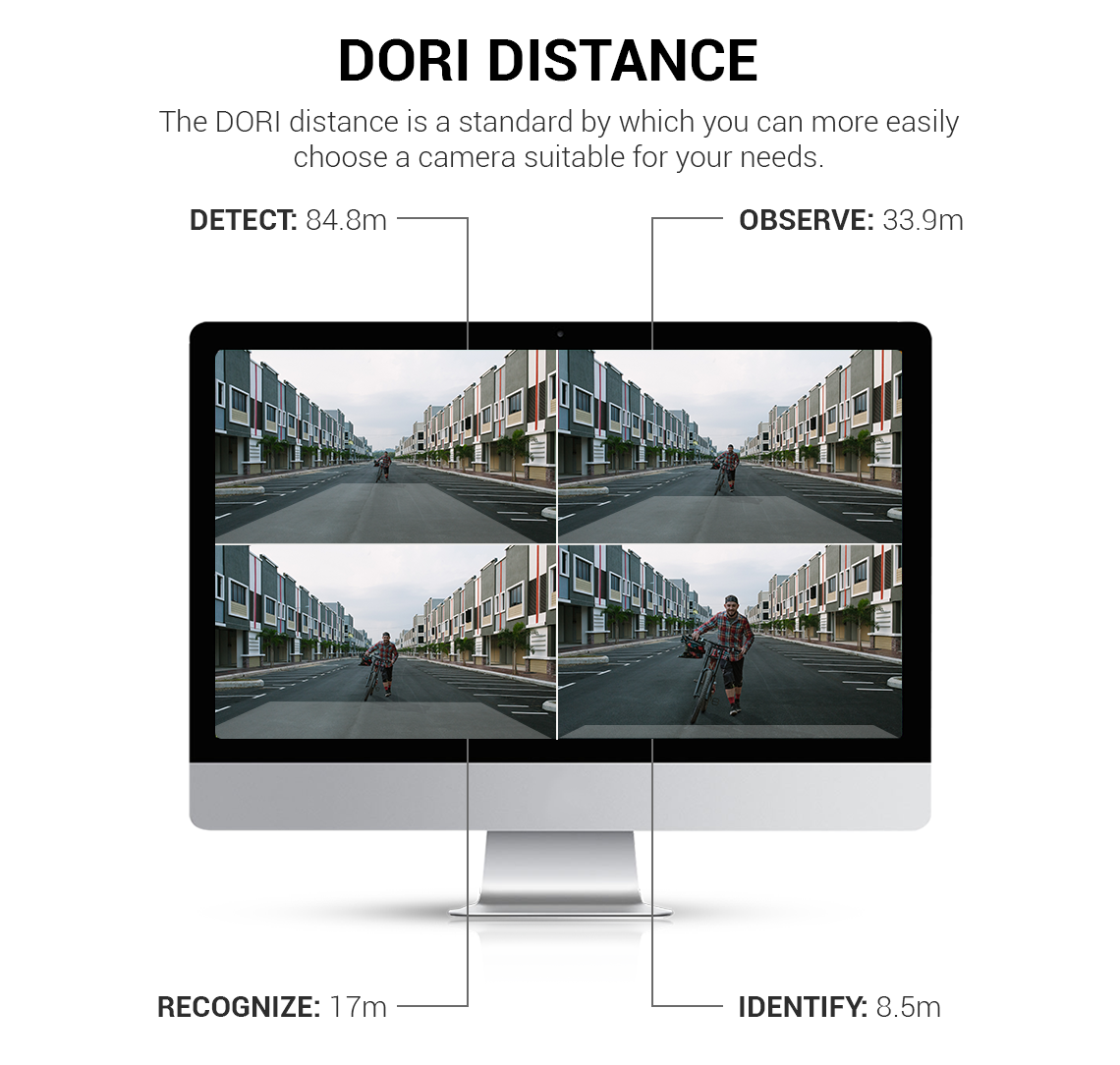

DORI Distance

• Detect: 84.8 m
• Observe: 33.9 m
• Recognize: 17.0 m
• Identify: 8.5 m

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining how clearly a person or object can be distinguished. Values listed are not for intelligent function detection. Refer to the installation manual or project design tool for intelligent detection ranges.

Intelligence

• Human Detection: Supports classification and accurate detection of humans
• Smart Search: Works with Smart NVR for refined intelligent search, event extraction, and merging to event videos

Video

• Compression: H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
• Smart Codec: Smart H.265+, Smart H.264+
• Frame Rate:
  • Main stream: 3840 × 2160 @ 1–20 fps / 2688 × 1520 @ 1–25/30 fps
  • Sub stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps

Maximum frame rates are per stream; actual rates depend on total encoding capacity.

• Streams: Dual-stream
• Resolutions Supported:
  • 8M (3840 × 2160), 6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
• Bit Rate Control: CBR / VBR
• Bit Rate Range:
  • H.264: 32 kbps–8192 kbps
  • H.265: 12 kbps–8192 kbps
• Day/Night Mode: Auto (ICR) / Color / B/W
• BLC / HLC / WDR: Supported (DWDR)
• White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
• Gain Control: Auto / Manual
• Noise Reduction: 3D NR
• Motion Detection: On/Off (4 areas)
• Region of Interest (RoI): 4 areas
• Smart Illumination: Supported
• Image Rotation: 0° / 90° / 180° / 270° (90°/270° supported up to 2688 × 1520 resolution)
• Mirror: Supported
• Privacy Masking: Up to 4 areas

Audio

• Built-in Microphone: Yes
• Audio Compression: G.711a, G.711Mu, PCM, G.726

Alarm

• Events:
  • Network disconnection
  • IP conflict
  • Illegal access
  • Motion detection
  • Video tampering
  • Audio detection
  • SMD (human)
  • Security exception

Network

• Port: RJ-45 (10/100 Base-T)
• SDK / API: Supported
• Protocols:
  IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
• Interoperability: ONVIF (Profile S & T), CGI
• Users: 6 users, total bandwidth 48 Mbps
• Storage: FTP
• Browser Support: IE, Chrome, Firefox
• Management Software: Smart PSS Lite, DSS, DMSS, DoLynk Care
• Mobile Clients: iOS, Android
• Cybersecurity:
  • Video/configuration encryption
  • Digest authentication
  • WSSE, Account lockout, Security logs
  • X.509 certificate support
  • HTTPS
  • Trusted boot, execution, and upgrade

Certification

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

• Supply: 12 VDC / PoE (802.3af)
• Consumption:
  • Basic: 2.5 W (12 VDC), 3.5 W (PoE)
  • Max: 4.5 W (12 VDC), 5.8 W (PoE) (with H.265, intelligence, DWDR, and max illumination)

Environment

• Operating Temp: –40 °C to +60 °C
• Humidity: ≤95% RH, non-condensing
• Storage Temp: –40 °C to +60 °C
• Storage Humidity: ≤95% RH, non-condensing
• Protection: IP67

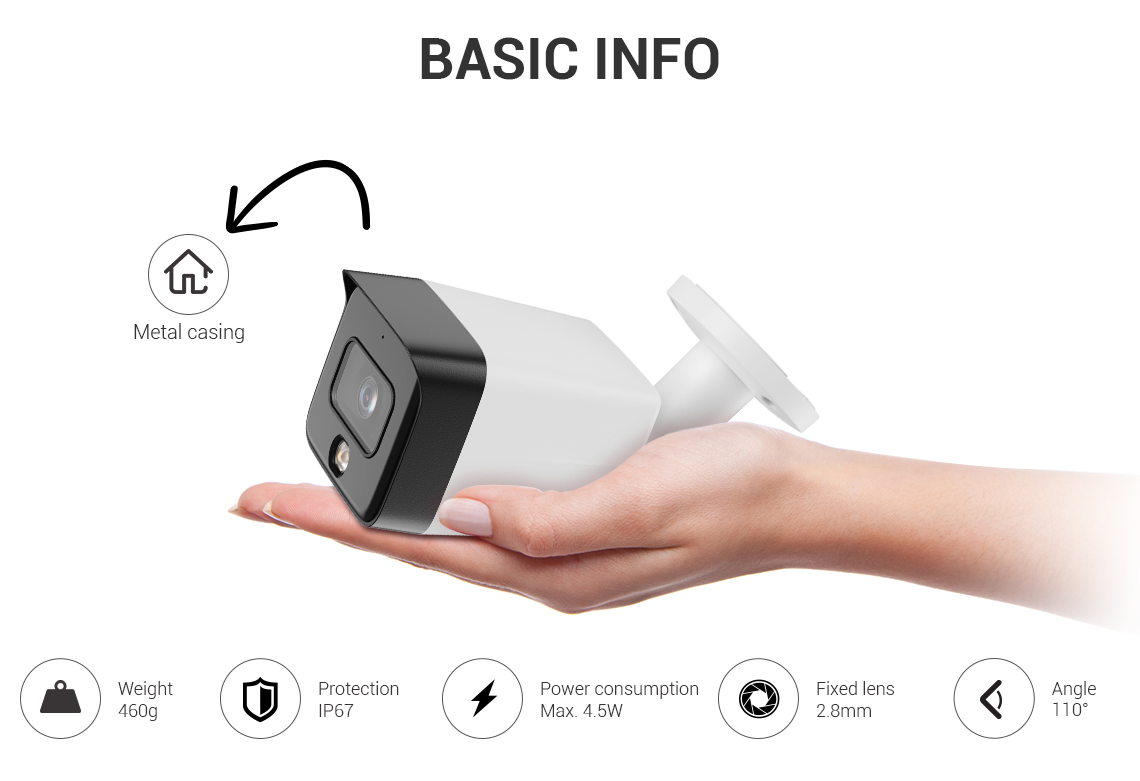

Structure

• Material: Metal
• Dimensions: 173.3 mm × 70.0 mm × 70.0 mm
• Net Weight: 0.46 kg
• Gross Weight: 0.57 kg
