> 12-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 12 MP (4480 × 2512)@15 fps, and supports 5 MP (3072 × 1728)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.
> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

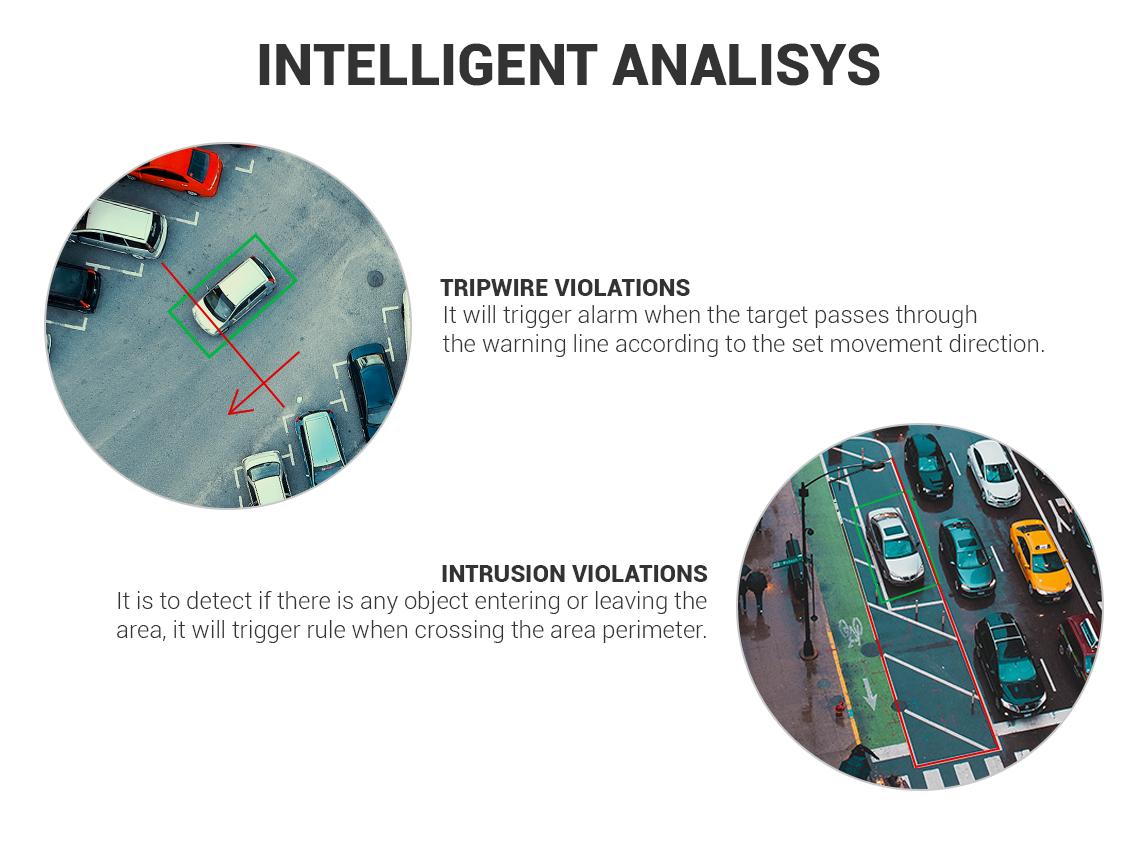

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

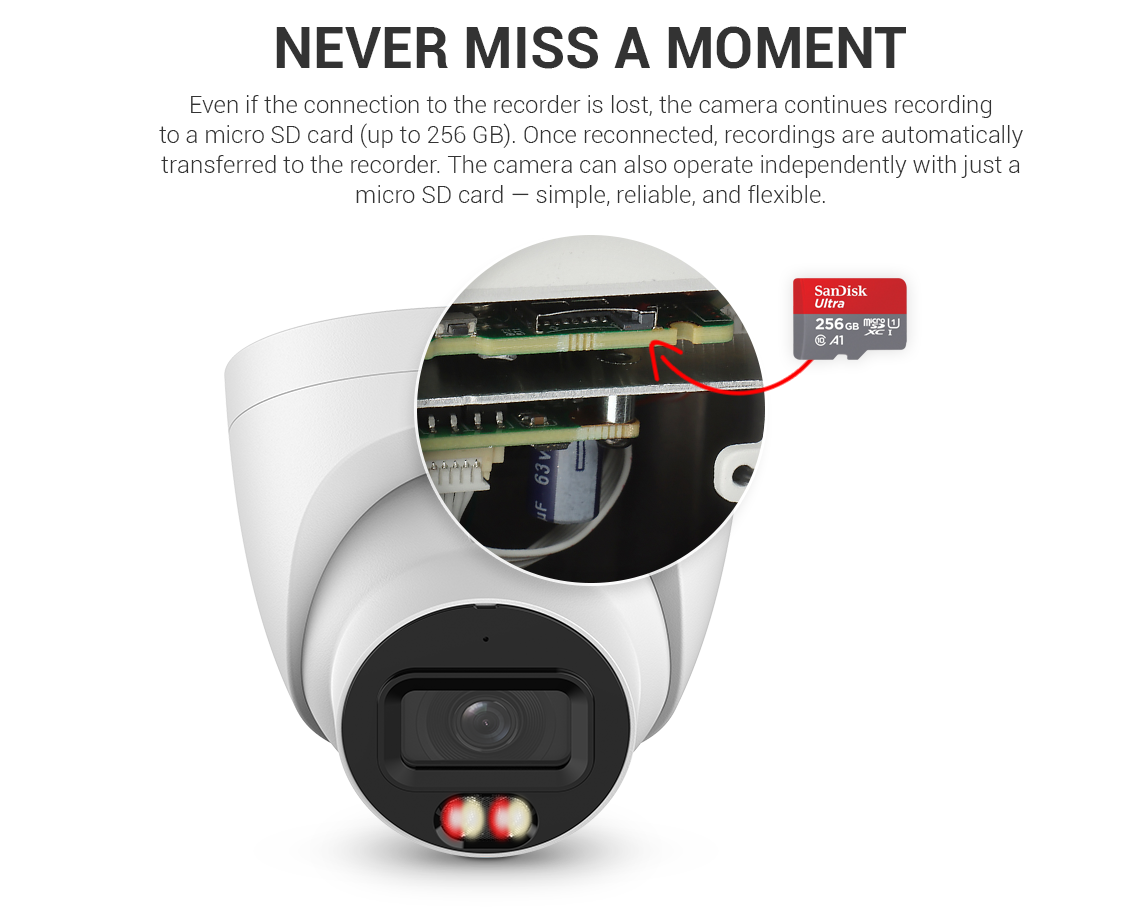

>  Supports max. 256 G Micro SD card; built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.

Camera
Image Sensor: 1/2.5" CMOS
Max. Resolution: 4480 (H) × 2512 (V)
ROM: 128 MB
RAM: 256 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination: 0.008 lux @ F1.6 (Color, 30 IRE); 0.0008 lux @ F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio: >56 dB
Illumination Distance: Up to 30 m (Warm light); Up to 30 m (IR)
Illuminator On/Off Control: Auto; Manual
Number of Illuminators: 2 (Multi-core IR + warm light)
Angle Adjustment: Pan 0°–360°; Tilt 0°–90°; Rotation 0°–360°

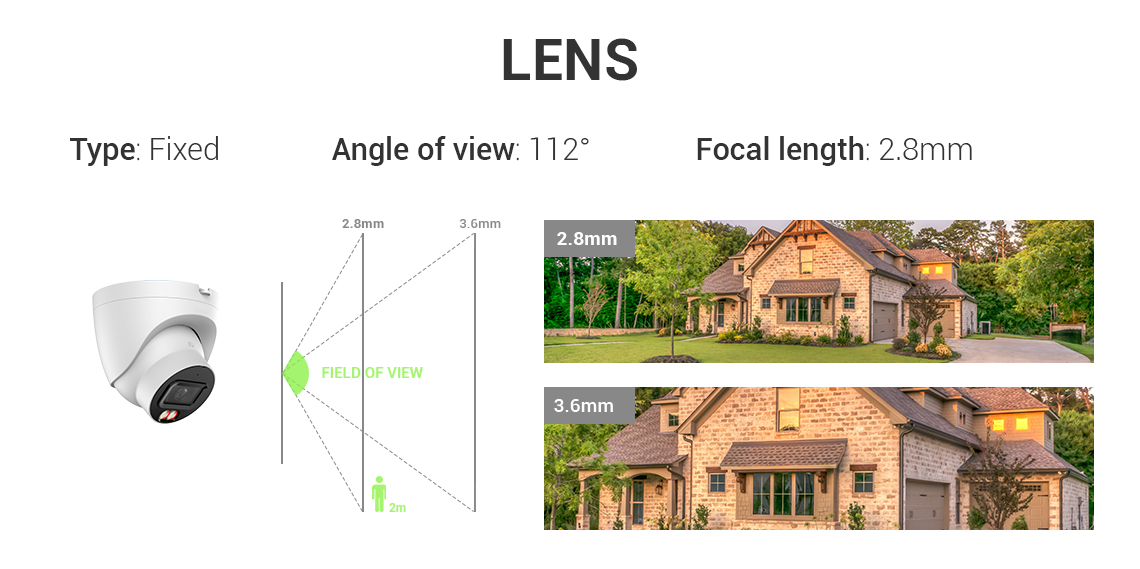

Lens
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm
Max. Aperture: F1.6
Field of View: H 112°, V 58°, D 136°
Iris Control: Fixed
Close Focus Distance: 3.5 m

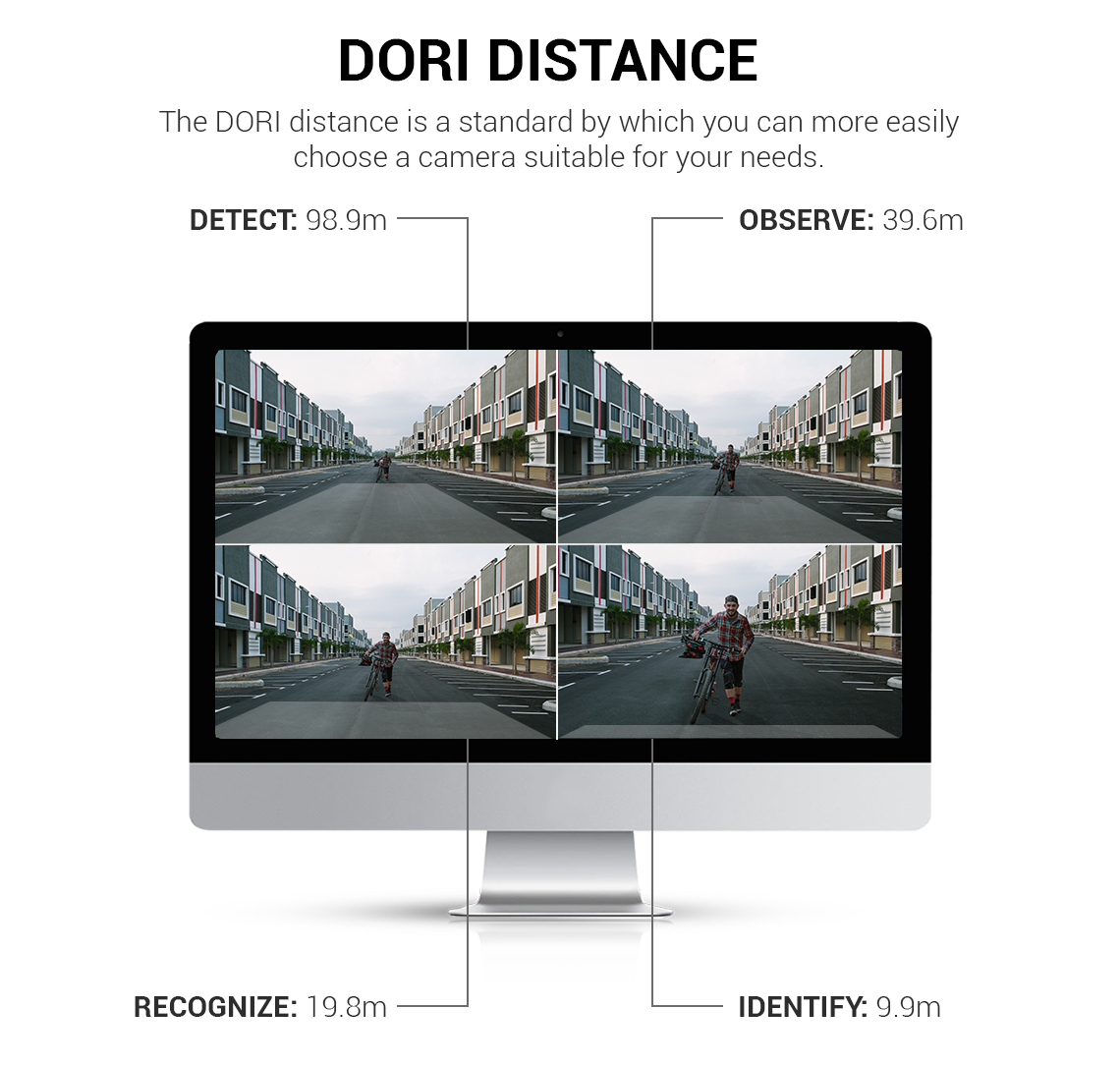

DORI Distance
Detect: 98.9 m
Observe: 39.6 m
Recognize: 19.8 m
Identify: 9.9 m
DORI (Detect, Observe, Recognize, Identify) is a standard (EN-62676-4) for assessing the ability of the camera to distinguish people or objects. Values do not reflect intelligent function distances.

Intelligence
IVS (Perimeter Protection): Intrusion, Tripwire (both support vehicle and human classification and accurate detection)
SMD: SMD Plus
Smart Search: Works with Smart NVR for refined intelligent search, event extraction, and merging to event videos

Video

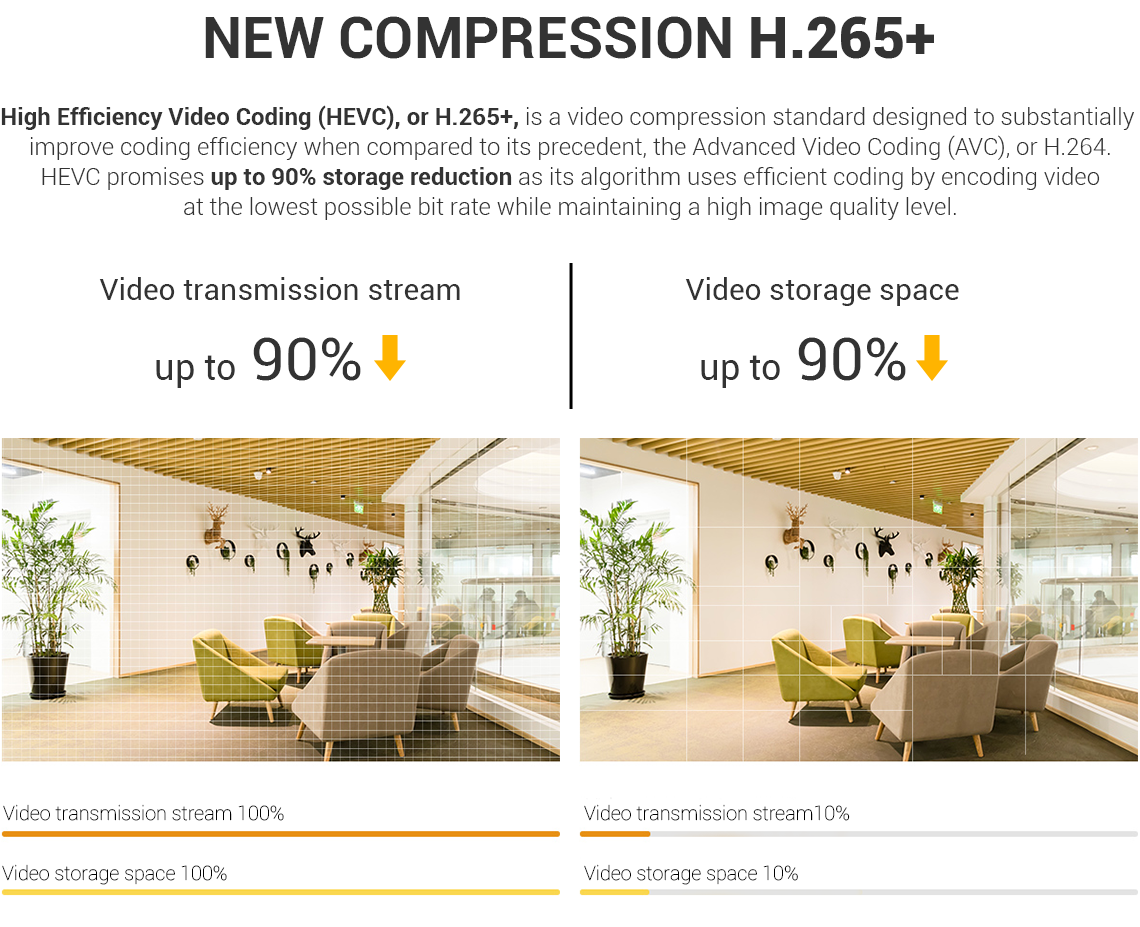

Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec: Smart H.265+; Smart H.264+
Video Frame Rate: Main stream 4480 × 2512 (1–15 fps) / 3072 × 1728 (1–25/30 fps); Sub stream 704 × 576 (1–25 fps) / 704 × 480 (1–30 fps)
Maximum frame rates per stream; multiple streams subject to total encoding capacity.
Streaming Capability: 2 streams
Resolution: 12M (4480 × 2512); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728 / 2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536 / 2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240)
Bit Rate Control: VBR; CBR
Video Bit Rate: H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Day/Night: Auto (ICR) / Color / B/W
BLC: Yes
HLC: Yes
WDR: DWDR
White Balance: Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom
Gain Control: Auto/Manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Smart Illumination: Yes
Smart Dual Light: Yes
Image Rotation: 0° / 90° / 180° / 270° (Supports 90° / 270° with 2688 × 1520 resolution and lower)
Mirror: Yes
Privacy Masking: 4 areas
LDC: Yes

Audio
Built-in MIC: Yes
Audio Compression: G.711a; G.711Mu; PCM; G.726

Alarm
Alarm Event: No SD card; SD card full; SD card error; Network disconnection; IP conflict; Illegal access; Motion detection; Video tampering; Tripwire; Intrusion; Audio detection; Voltage detection; SMD; Security exception

Network
Network Port: RJ-45 (10/100 Base-T)
SDK and API: Yes
Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Interoperability: ONVIF (Profile S, G, T); CGI
User/Host: 20 (Total bandwidth: 48 M)
Storage: FTP; SFTP; Micro SD card (max. 256 GB); NAS
Browser: IE; Chrome; Firefox

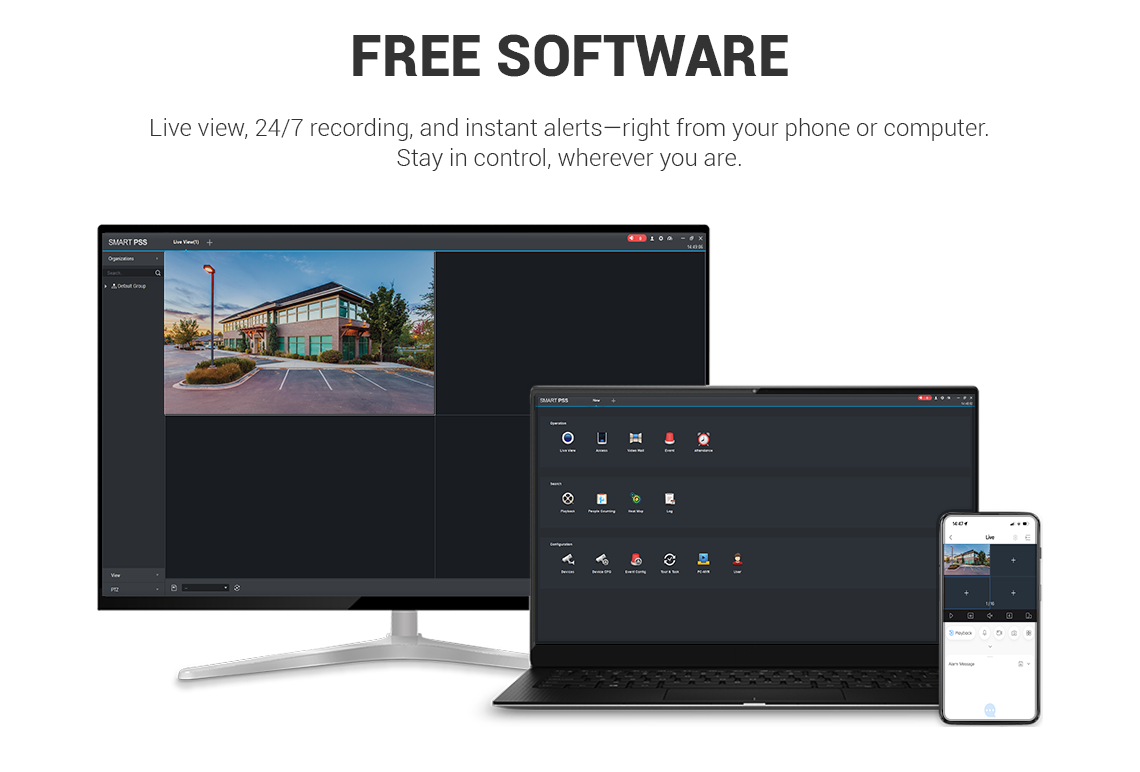

Management Software: Smart PSS Lite; DSS; DMSS
Mobile Client: Android; iOS
Security: Session security; WSSE; Account lockout; Trusted execution; X.509 certificate generation/import; 802.1x; Security logs; Digest; Security warning; IP/MAC filtering; HTTPS; Trusted upgrade; Syslog; Trusted boot

Certification
Certifications: CE-LVD: EN62368-1; CE-EMC: EMC Directive 2014/30/EU

Power

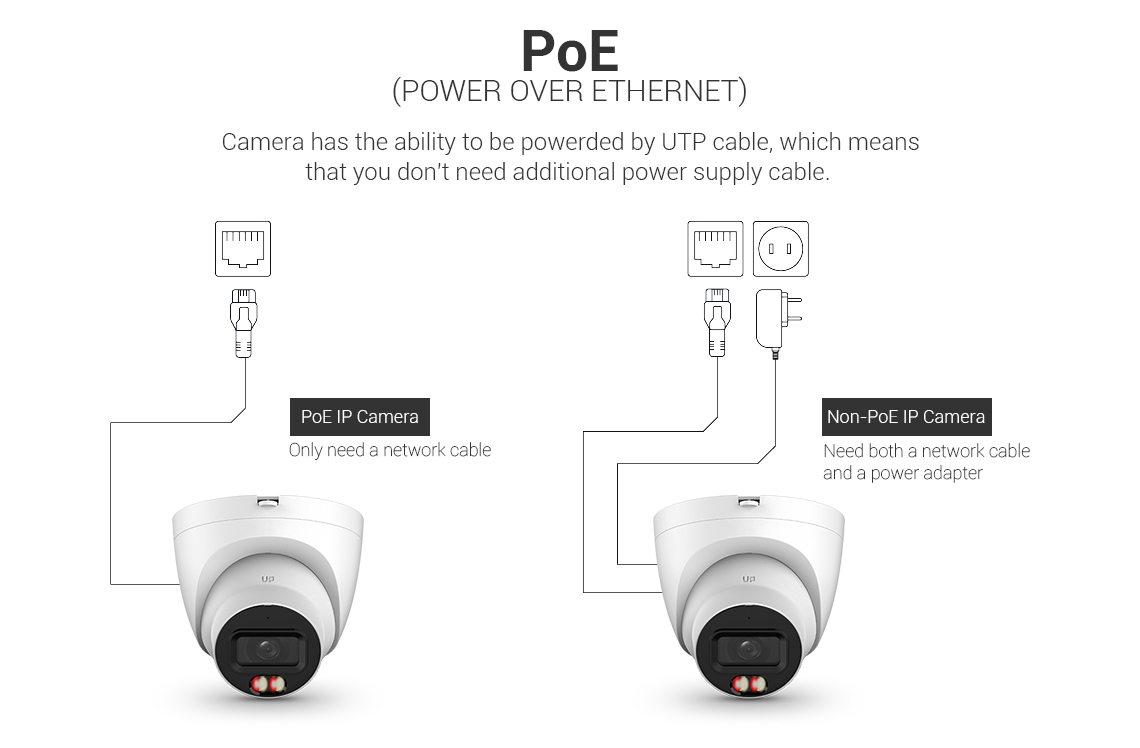

Power Supply: 12 VDC (±30%); PoE (802.3af)
Power Consumption: Basic 2.3 W (12 VDC); 3.0 W (PoE); Max. 6.2W (12 VDC); 7.2W (PoE) (H.265 + intelligence on + illuminator intensity)

Environment
Operating Temperature: –40 °C to +60 °C
Operating Humidity: ≤95% RH, non-condensing
Storage Temperature: –40 °C to +60 °C
Storage Humidity: ≤95% RH, non-condensing
Protection: IP67

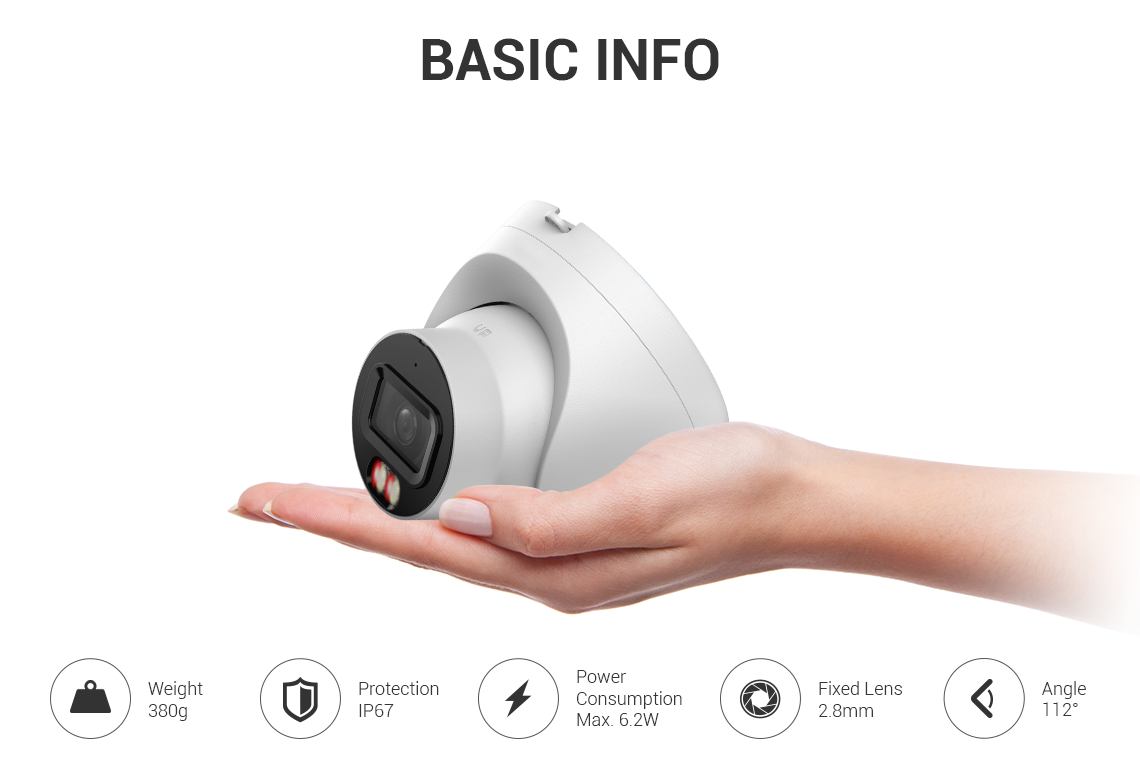

Structure
Casing Material: Metal, plastic

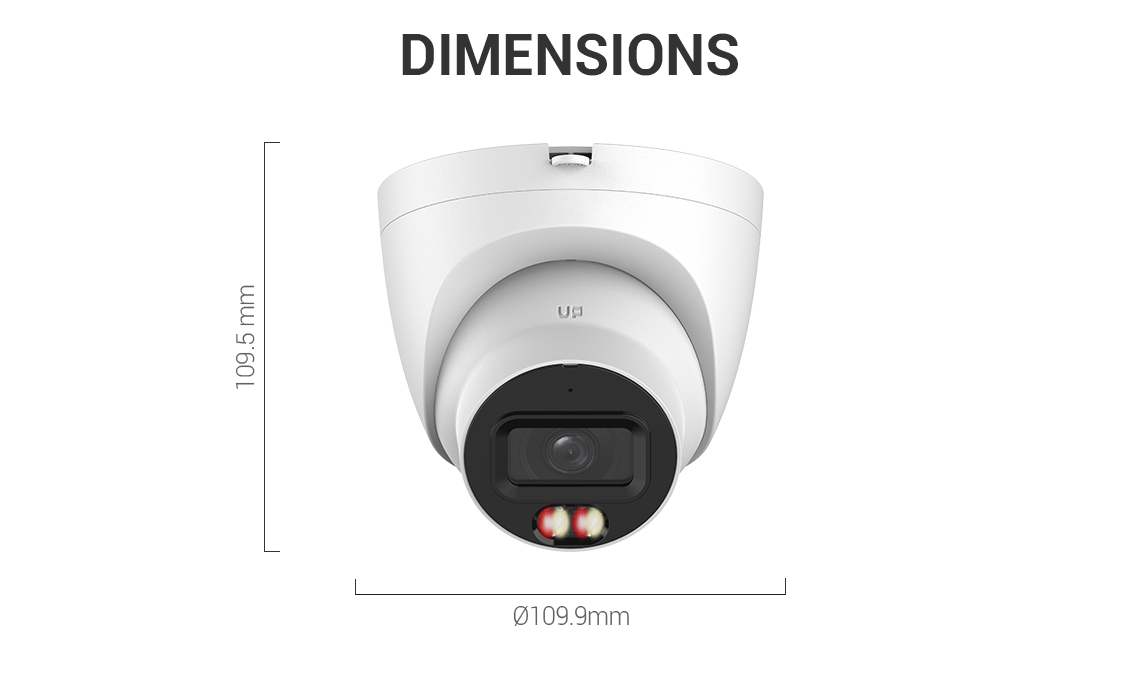

Product Dimensions: 109.5 mm × Φ109.9 mm
Net Weight: 0.38 kg
Gross Weight: 0.52 kg
