Camera
- Image Sensor: 1/2.7" CMOS
- Max. Resolution: 3840 (H) × 2160 (V)
- ROM: 128 MB
- RAM: 256 MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual, 1/3 s–1/100,000 s
- Minimum Illumination:
- 0.008 lux @ F1.6 (Color, 30 IRE)
- 0.0008 lux @ F1.6 (B/W, 30 IRE)
- 0 lux (Illuminator on)
- S/N Ratio: > 56 dB
- Illumination Distance: Up to 30 m (IR and warm light)
- Illuminator On/Off Control: Auto / Manual
- Illuminator Number: 1 (Multi-core IR + warm light)
- Angle Adjustment:
- Pan: 0°–360°
- Tilt: 0°–78°
- Rotation: 0°–360°

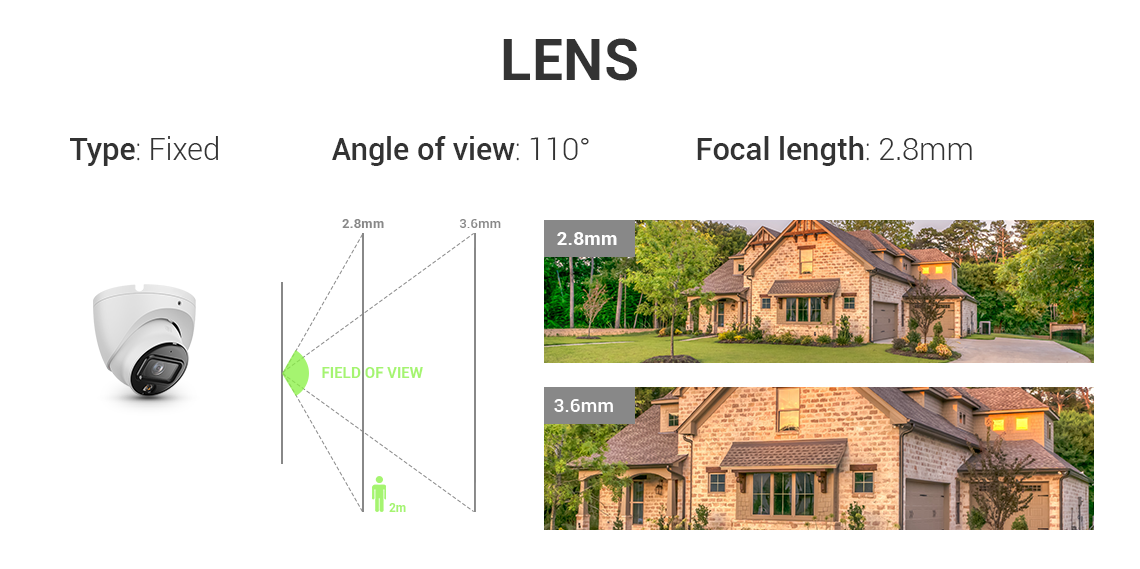

Lens
- Lens Type: Fixed-focal
- Lens Mount: M12
- Focal Length: 2.8 mm
- Max. Aperture: F1.6
- Field of View:
- Horizontal: 110°
- Vertical: 58°
- Diagonal: 132°
- Iris Control: Fixed
- Close Focus Distance: 1.5 m

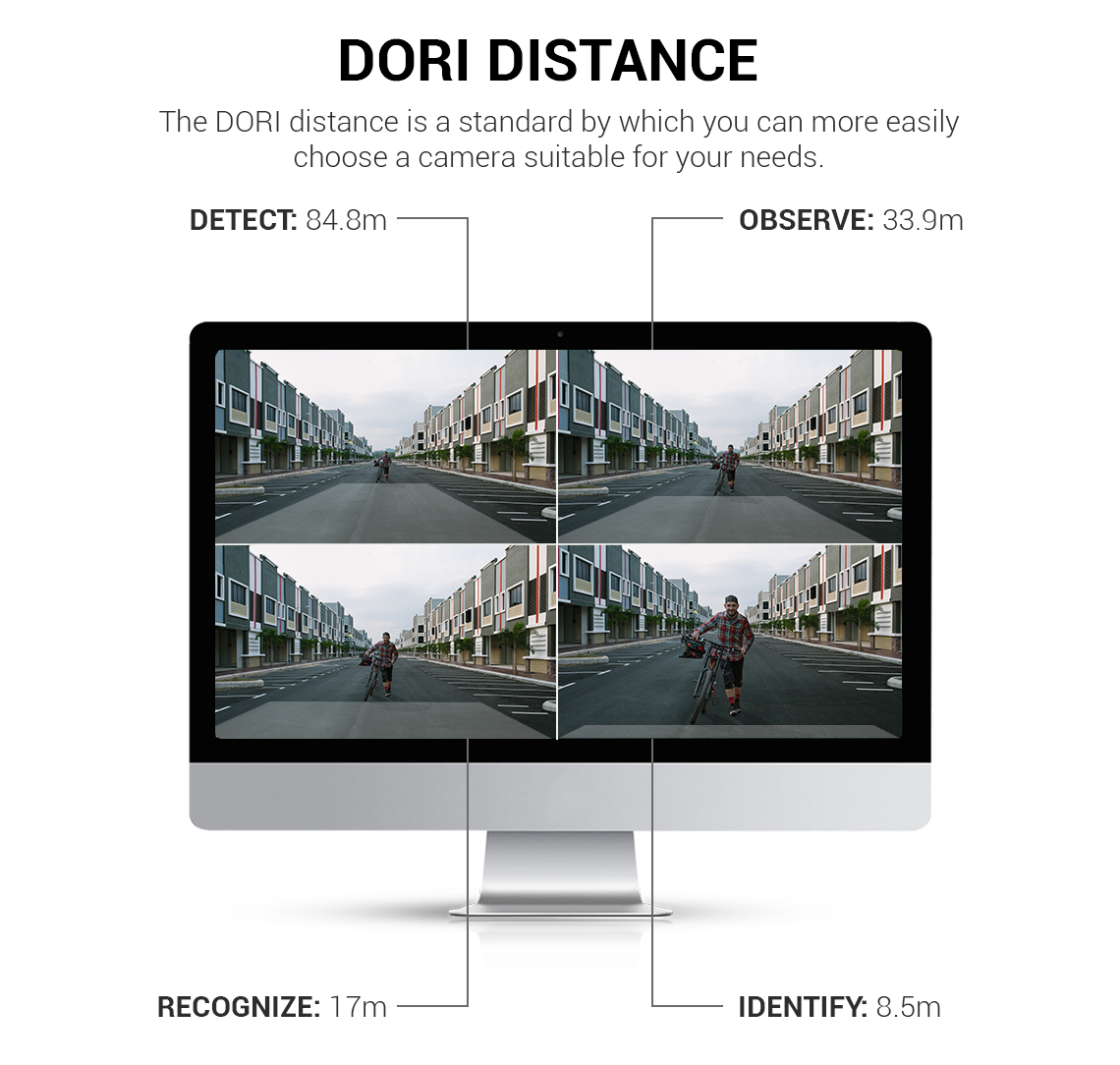

DORI Distance
- Detect: 84.8 m
- Observe: 33.9 m
- Recognize: 17.0 m
- Identify: 8.5 m
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) used to define the ability of an operator to distinguish persons or objects in a monitored area. Values listed do not reflect intelligent function ranges. Refer to the installation and commissioning manual/project design tool for intelligent function distances.
Intelligence
- Human Detection: Supports classification and accurate detection of humans
- Smart Search: Works with Smart NVR to perform refined intelligent search, event extraction, and merging to event videos
Video
- Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub-stream only)

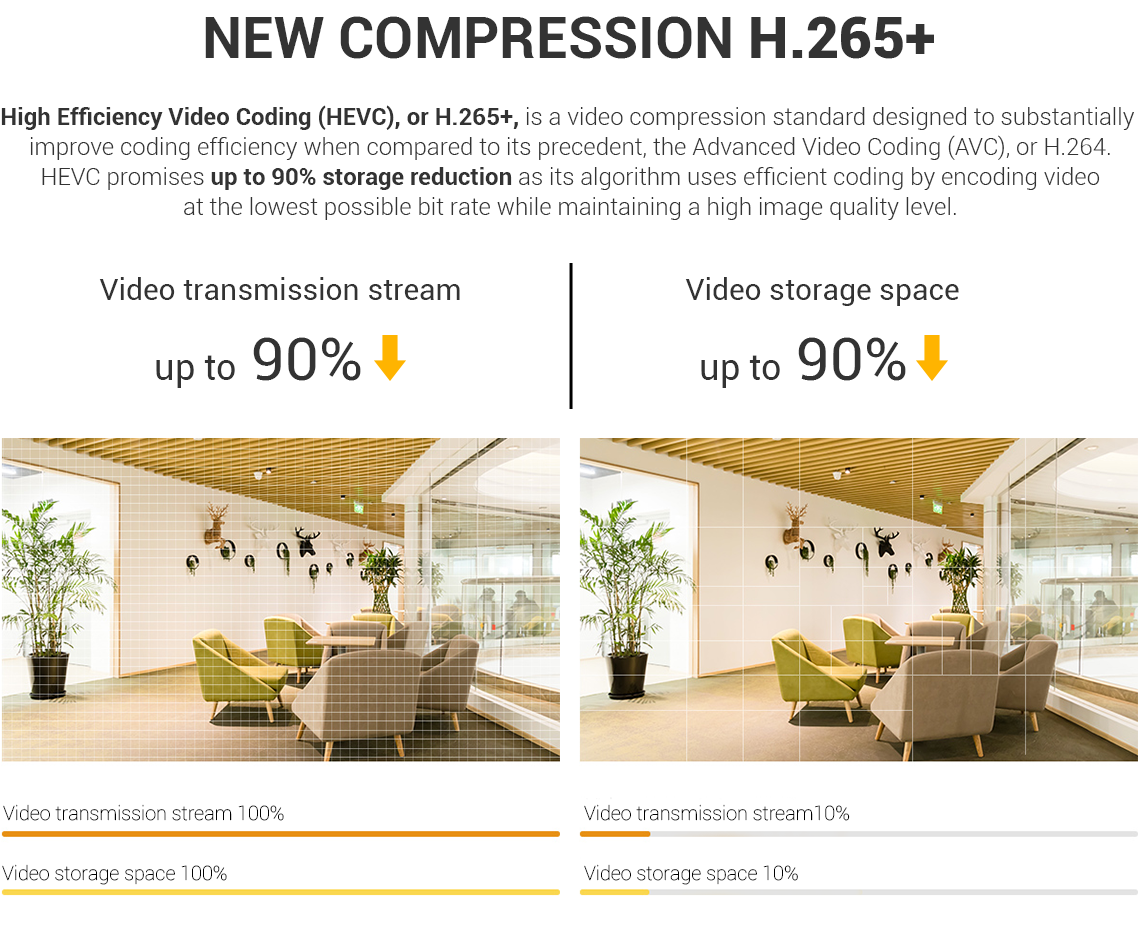

- Smart Codec: Smart H.265+; Smart H.264+
- Video Frame Rate:
- Main stream: 3840 × 2160 @ 1–20 fps / 2688 × 1520 @ 1–25/30 fps
- Sub stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
Maximum frame rates are per stream; actual rates depend on total encoding capacity.
- Stream Capability: 2 streams
- Resolution:
- 8M (3840 × 2160), 6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
- Bit Rate Control: CBR / VBR
- Video Bit Rate:
- H.264: 32 kbps–8192 kbps
- H.265: 12 kbps–8192 kbps
- Day/Night: Auto (ICR) / Color / B/W
- BLC / HLC: Supported
- WDR: DWDR
- White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
- Gain Control: Auto / Manual
- Noise Reduction: 3D NR
- Motion Detection: On / Off (4 areas)
- Region of Interest (RoI): 4 areas

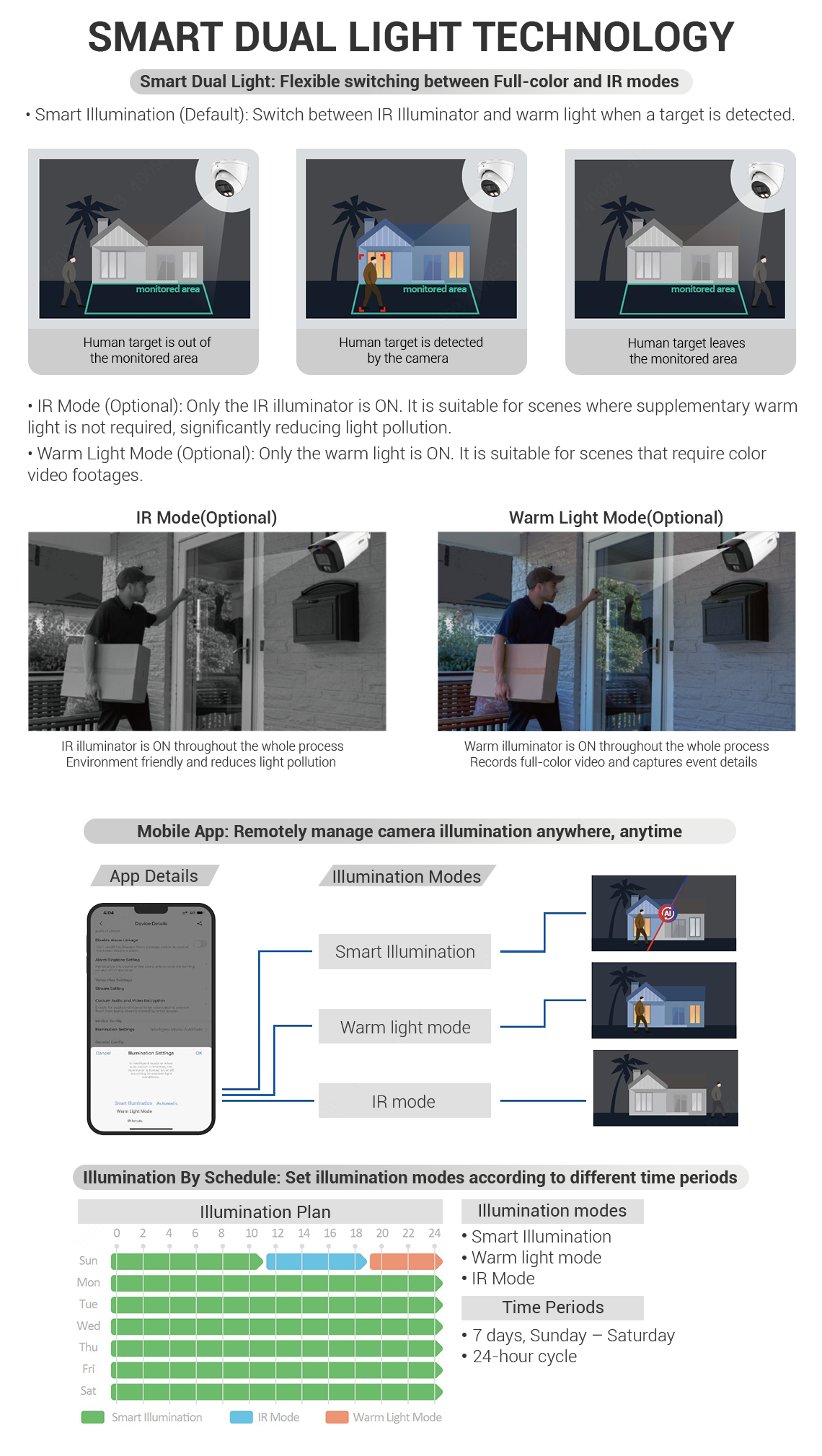

- Smart Illumination: Supported
- Image Rotation: 0° / 90° / 180° / 270° (supports 90°/270° with resolution 2688 × 1520 and lower)
- Mirror: Supported
- Privacy Masking: Up to 4 areas
Audio
- Built-in Microphone: Yes
- Audio Compression: G.711a; G.711Mu; PCM; G.726
Alarm
- Alarm Events:
- Network disconnection
- IP conflict
- Illegal access
- Motion detection
- Video tampering
- Audio detection
- SMD (human)
- Security exception
Network
- Network Port: RJ-45 (10/100 Base-T)
- SDK / API: Supported
- Protocols:
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
- Interoperability: ONVIF (Profile S & Profile T); CGI
- User/Host: 6 users (total bandwidth 48 Mbps)
- Storage: FTP
- Browser Support: IE, Chrome, Firefox

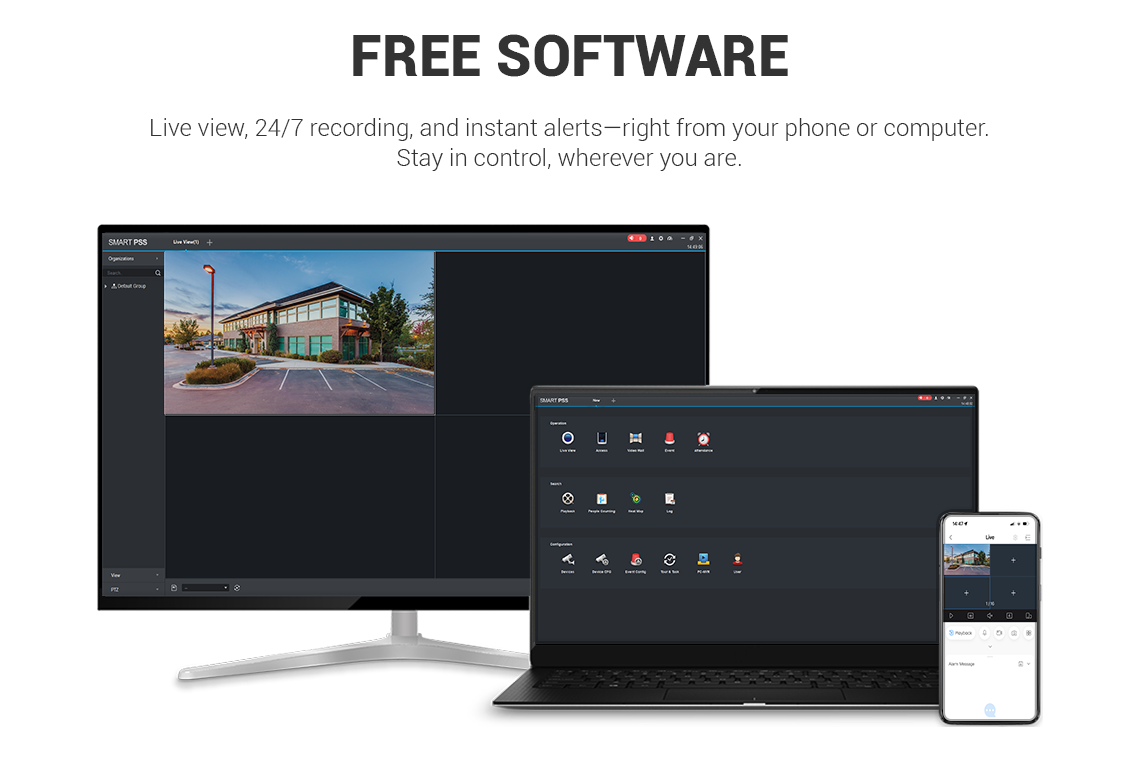

- Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care
- Mobile Client: iOS, Android
Cyber Security
- Video encryption
- Configuration encryption
- Digest authentication
- WSSE
- Account lockout
- Security logs
- Generation and import of X.509 certificates
- HTTPS
- Trusted boot
- Trusted execution
- Trusted upgrade
Certification
- CE-LVD: EN62368-1
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Power

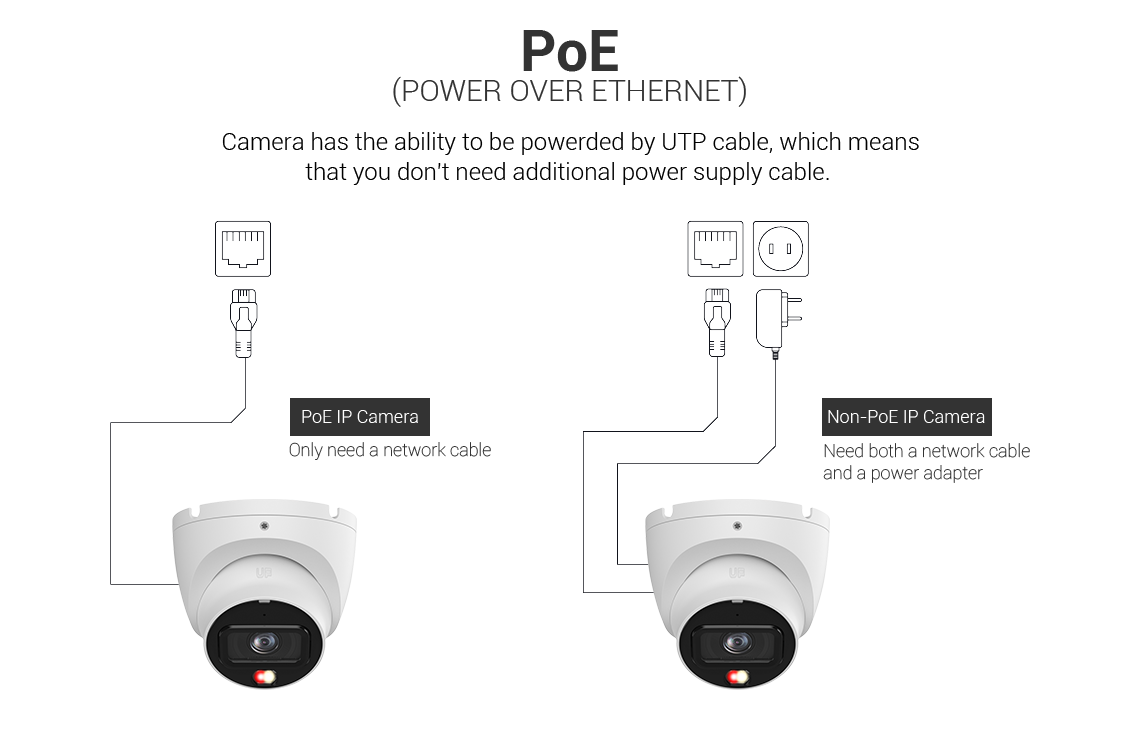

- Power Supply: 12 VDC / PoE (802.3af)
- Power Consumption:
- Basic: 2.5 W (12 VDC), 3.5 W (PoE)
- Max: 4.5 W (12 VDC), 5.8 W (PoE) (with H.265, intelligence on, DWDR, maximum illuminator intensity)
Environment
- Operating Temperature: –40 °C to +55 °C
- Operating Humidity: ≤95% RH, non-condensing
- Storage Temperature: –40 °C to +55 °C
- Storage Humidity: ≤95% RH, non-condensing
- Protection: IP67

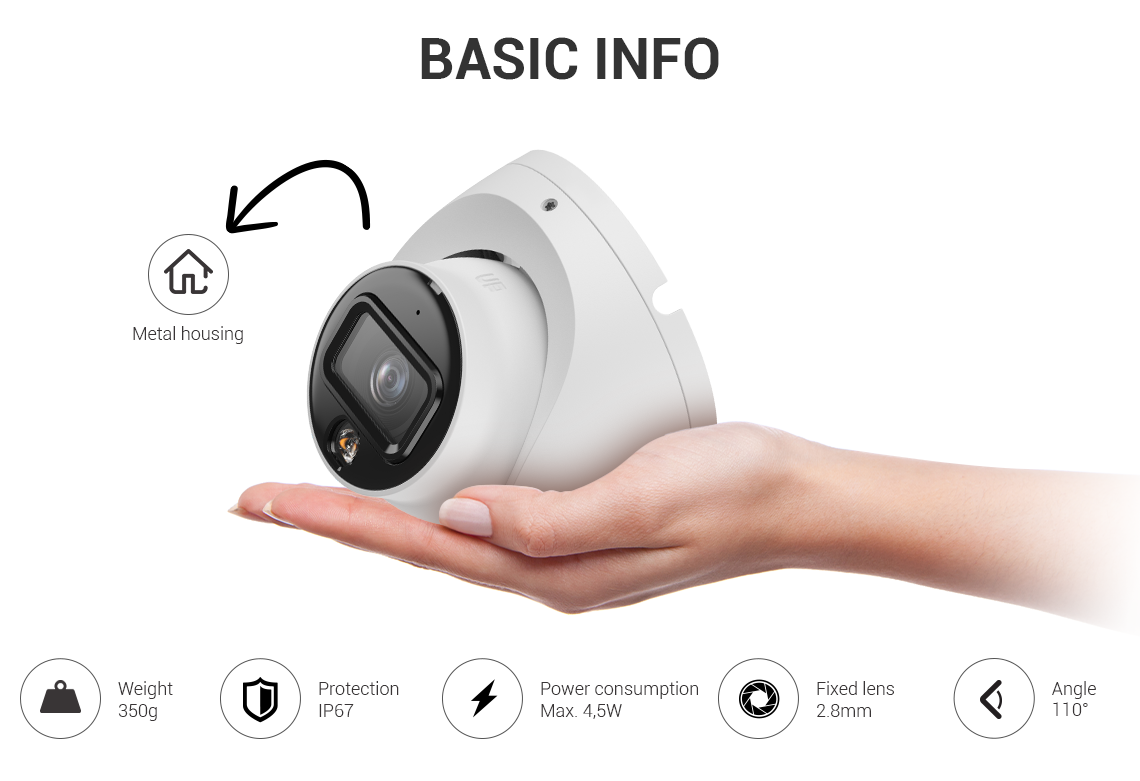

Structure
- Casing Material: Metal

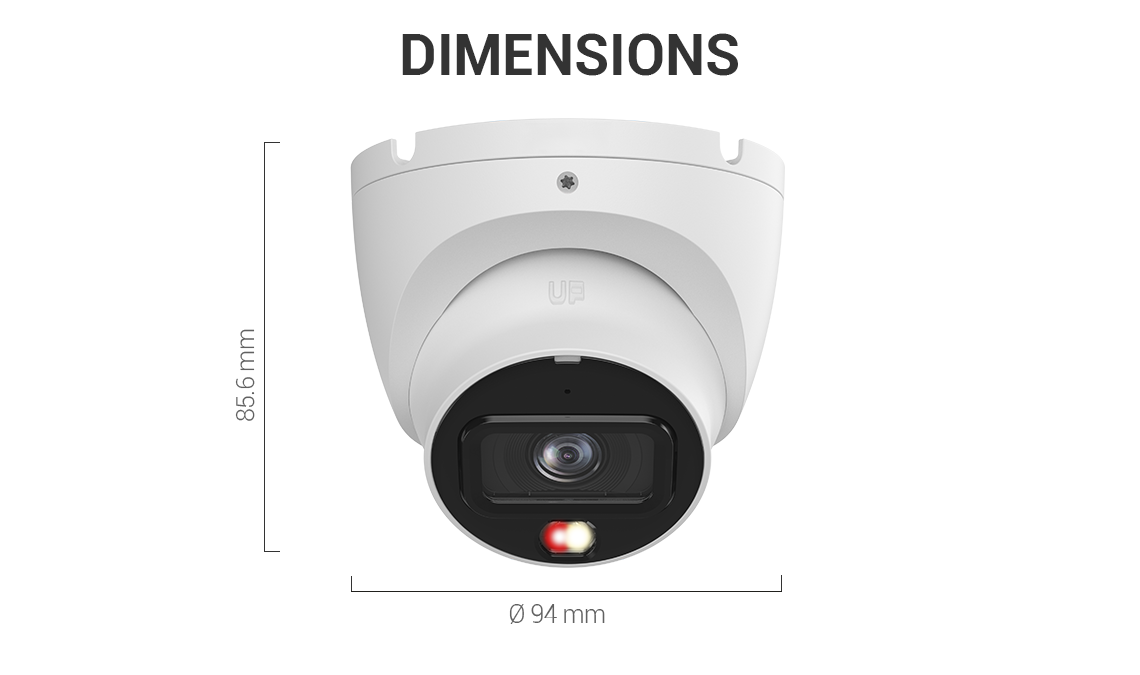

- Product Dimensions: 85.6 mm × Φ94.0 mm
- Net Weight: 0.35 kg
- Gross Weight: 0.46 kg
