> 1/2.8" 8Megapixel STARVIS™ CMOS
> 25× optical zoom
> Starlight technology
> Max. 25/30fps@8M
> IR distance up to 100 m
> Warm light distance up to 100 m
> Perimeter protection
> Face detection
> SMD 4.0
> IP67


Camera
• Image Sensor: 1/2.8" CMOS
• Pixel: 8 MP
• Max. Resolution: 3840 (H) × 2160 (V)
• ROM / RAM: 4 GB / 2 GB
• Electronic Shutter Speed: 1 s–1/30,000 s
• Scanning System: Progressive
• Min. Illumination:
     – 0.005 lux@F1.6 (Color, 30 IRE)
     – 0.0005 lux@F1.6 (B/W, 30 IRE)
     – 0 lux (illuminator on)
• Illumination Distance:
     – IR: 100 m (328.08 ft)
     – Warm light: 50 m (164.04 ft)
• Illuminator On/Off Control: Zoom Prio; Manual; Auto; Off
• Illuminator Number:
     – 2 (IR)
     – 2 (Warm light)
     – 2 (Dual-core light)

Lens
• Focal Length: 5 mm–125 mm
• Max. Aperture: F1.6–F3.6
• Field of View:
     – H: 57.73°–3.73°
     – V: 33.6°–2.08°
     – D: 64.92°–4.27°
• Optical Zoom: 25×
• Focus Control: Auto; semi-auto; manual
• Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)
• Iris Control: Auto

DORI Distance
• Wide (W):
     – Detect: 137.9 m
     – Observe: 55.2 m
     – Recognize: 27.6 m
     – Identify: 13.8 m
• Tele (T):
     – Detect: 3,448.3 m
     – Observe: 1,379.3 m
     – Recognize: 689.7 m
     – Identify: 344.8 m
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4). The values do not reflect intelligent function distances.

PTZ
• Pan/Tilt Range:
     – Pan: 0° to 360° endless
     – Tilt: –15° to +90°, auto flip 180°
• Manual Control Speed:
     – Pan: 0.1°–200°/s
     – Tilt: 0.1°–120°/s
• Preset Speed:
     – Pan: 0.1°–240°/s
     – Tilt: 0.1°–200°/s
• Preset: 300
• Tour: 8
• Pattern: 5
• Scan: 5
• Power-off Memory: Yes
• Idle Motion: Preset; Pattern; Tour; Scan

Intelligence
• IVS (Perimeter Protection): Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking
• Face Detection: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots, face enhancement, attribute extraction (6 attributes, 8 expressions) and face cutout; snapshot modes include real-time, quality first and preferred image selection
• Smart Tracking: Auto Tracking 3.0
• SMD: SMD 4.0
• AcuPick: Uses deep learning algorithms with backend devices to accurately match people and motor vehicles and quickly search live and recorded video
• Auto Patrol: Triggers IVS rules and links PTZ to rotate to target position and patrol based on presets

Video
• Video Compression: Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1)
• Streaming Capability: 3 streams
• Resolution: 8M (3840 × 2160); 4M (2560 × 1440); 3M (2304 × 1296); 1080p; 960p; 720p; D1; VGA; CIF
• Video Frame Rate:
     – Main stream: 8M/4M/3M/1080p/1.3M/720p@(1–25/30 fps)
     – Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
     – Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)
• Bit Rate Control: CBR / VBR
• Video Bit Rate:
     – H.264: 128 kbps–16,384 kbps
     – H.265: 51 kbps–11,776 kbps
• Day/Night: Auto (ICR) / Color / B/W
• BLC: Yes
• WDR: DWDR
• HLC: Yes
• White Balance: Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
• Gain Control: Auto; manual; Gain priority
• Noise Reduction: 2D NR; 3D NR
• Motion Detection: Yes
• Region of Interest (RoI): Yes
• Image Stabilization: Electronic Image Stabilization (EIS)
• Defog: Electronic
• Digital Zoom: 16×
• Image Rotation: 180°
• Privacy Masking: Up to 24 areas (max. 8 per view)
• S/N Ratio: ≥55 dB

Audio
• Audio Compression: PCM; G.711A; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723

Network
• Network Port: 1 × RJ-45 (10/100 Base-T)
• Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SMB; NFS
• Interoperability: ONVIF (Profile S / G / T); CGI; SDK
• Streaming Method: Unicast / Multicast
• User/Host: 20 (total bandwidth: 64 M)
• Storage: Micro SD card (512 GB); FTP/SFTP; NAS
• Browser: web5.0 (IE 9+, Chrome 41+, Firefox 50+, iOS 10+)
• Management Software: DMSS; DSS Pro
• Mobile Client: iOS; Android

Certification
• Certifications: CE – EN55032 / EN55024 / EN50130-4

Port
• Audio Input: 1 channel (LINE IN, bare wire)
• Audio Output: 1 channel (LINE OUT, bare wire)
• Alarm Input: 2
• Alarm Output: 1 channel
• Alarm Linkage: Capture; recording; send email; preset; tour; pattern; alarm digital output
• Alarm Event: Motion / tampering; audio detection; network disconnection; IP conflict; memory card state; memory space
• Alarm I/O: 2 / 1
• Audio I/O: 1 / 1

Power
• Power Supply: 12 VDC, 3 A ±10%; PoE (802.3at)
• Power Consumption:
     – DC: Basic 8 W; Max. 20 W (illuminator + PTZ)
     – PoE: Basic 11 W; Max. 23 W (illuminator + PTZ)
• Power Adapter: Optional

Environment
• Operating Temperature: –40 °C to +70 °C
• Operating Humidity: ≤95%
• Protection: IP67; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure
• Product Dimensions: 270.4 mm × Φ160 mm
• Net Weight: 2.4 kg
• Gross Weight: 3.9 kg

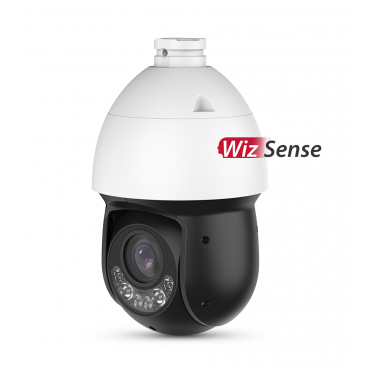

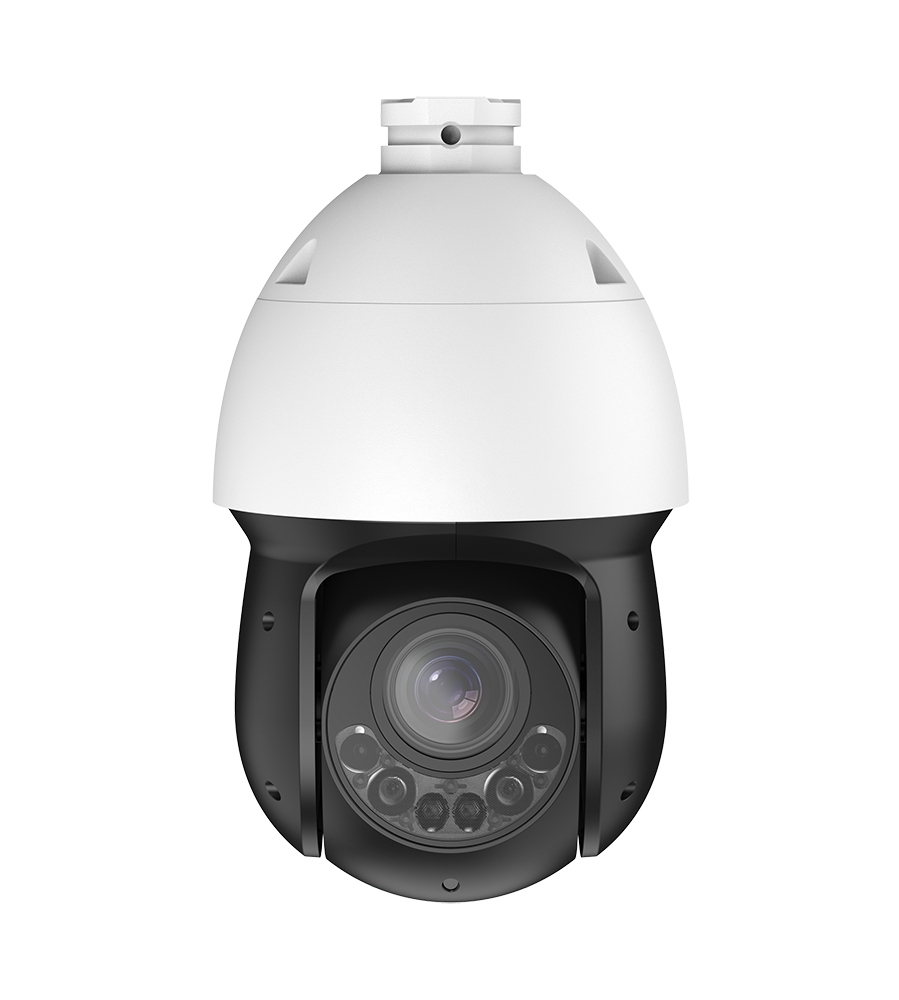

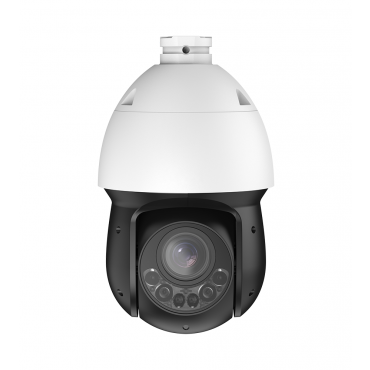

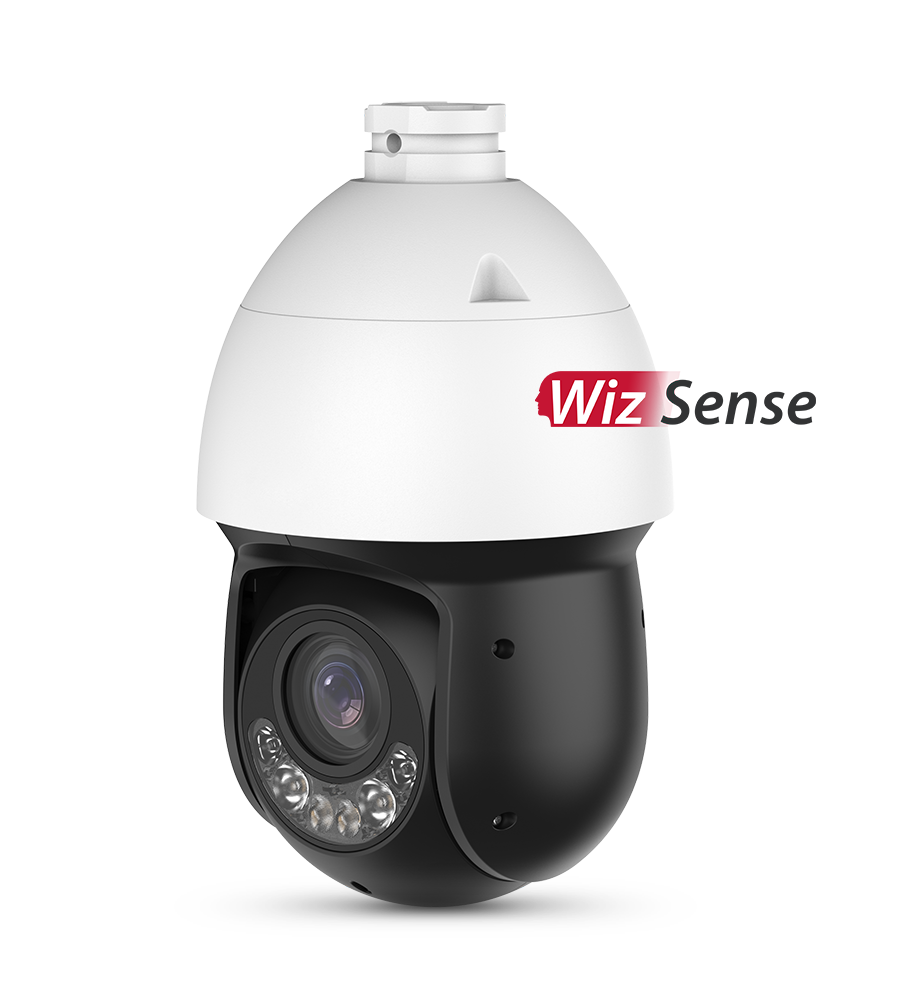

POLICEtech SD825MB-HNR navodila
